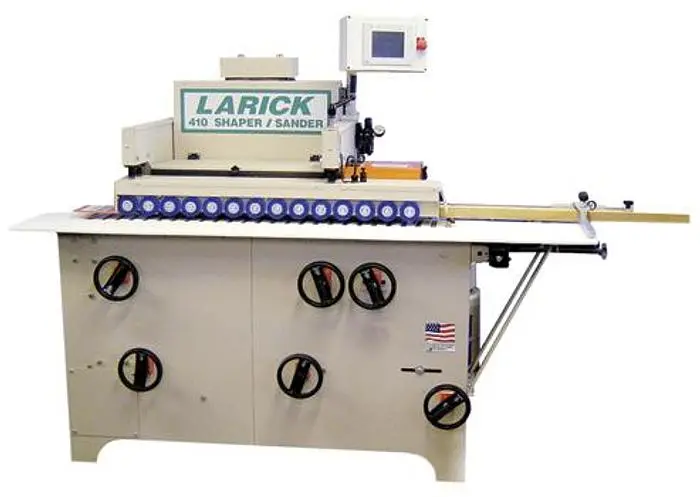

NEW LARICK 410 SHAPER/SANDER

Designed and manufactured to give years of dependable service, the Larick 410 will shape and sand a wide variety of workpieces. Features include a 6” wide feed chain with four staggered rows of hold-down tires • front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions • AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load • Floating heads are optional which allow shaping and sanding of arched panels. The user-friendly design makes setup and profile changeovers quick and easy. CONTROL UNIT:  AC inverter controlled variable speed for Shaper, Sanders, and Feed NEW, easy-to-use touchscreen displays RPM and Load for each motor Shaper brake is standard for safer operation Backlit LCD screen with adjustable height swivels to provide for a better view. 208-230 or 460 volt/3PH/50-60 HZ SHAPER STATION & FENCE: 71/2 HP Shaper Motor Variable speed from 4000 to 7000 RPM Horizontal and Vertical adj with digital position indicators 11/4” spindle dia., 4” to 7” dia. cutter capacity Optional: floating head for shaping arched panels 5 adjustable preset fence positions “Chipbreaker” fence almost eliminates splintering without a messy, costly, 2nd hogging shaper Push bar to feed arched panels squarely SANDING STATIONS: Two sanding stations with 1” counter rotating spindles 2 HP motors, 400 to 1800 RPM variable speed Each station tilts forward 60o and backward 40o Horizontal and verticle adj. with digital position indicators Air jet cleaning/cooling devices at each station CONVEYOR SYSTEM: 6 inch wide heavy duty track with 4 staggered rows of hold down tires for part stability 3/4 HP feed motor, 0 to 20 FPM 14-1/2” wide table for product support Handles workpieces up to 13/4” thick Will accommodate up to 9” diameter sanding wheels Optional: Floating heads for sanding arched panels

Shaper Motor: 7.5 HP Belt Driven
Shaper Spindle Speed: 4000-7000 rpm
Shaper Spindle: 1-¼" Dia.

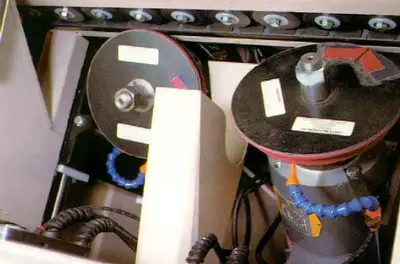

Sander Motors: 1.5 HP Direct Drive
Sander Spindle Speed: 400-1800 rpm
Sander Spindles: 1" Dia. by 4" Tall
Conveyor: 6" Wide, 4 rows of tires
Vertical Adjustment: Yes, with digital counters
Horizontal Adjustment: Yes, with digital counters
Sanding Wheel Tilt: 60º Forward; 40º Back
Fence: 5 adjustable stops
Table Height: 36 inches
Size: 75" x 36" x 54"
