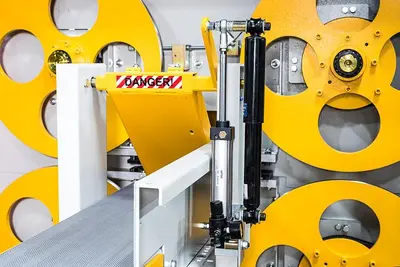

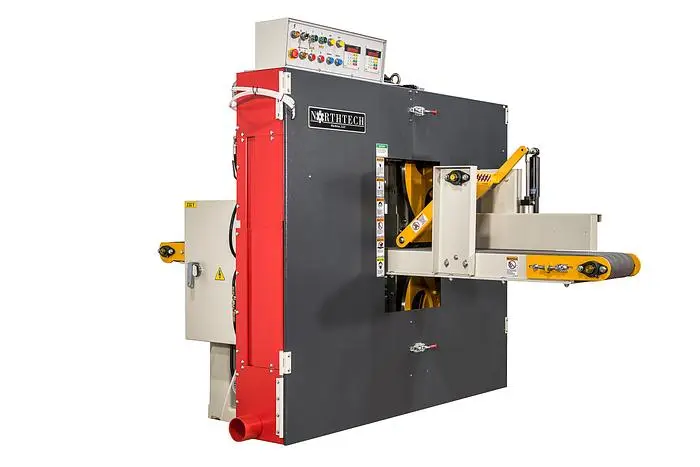

NEW NORTHTECH NT-HBR250BS-2A

The Northtech HBR250BS-2A is a (2) headed resaw. The top over bottom design not only reduces machine footprint when compared to a traditional multi-head resaw but it relieves stress at the same point for 2 cuts which results in a greater amount thickness consistency on outbound parts. Fabricated with a heavy-duty steel frame that can handle multiple shift operations and a functional simplicity that makes it easy to operate. Full access double door guards and digital head positioning allows quicker change overs with 2x the production output.

TOP HEAD HP: 20 HP
BOTTOM HEAD HP: 20 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 108/54 Amps
FEED HP: 2 Hp
FEED SYSTEM: Feed Mat
DRIVE SYSTEM: Hydraulic Pump
FEED SPEED RANGE: 0-80 FPM
VARIABLE FEED SPEED: Hydraulic Knob Adjustment
ELEVATION HP: (2) 1/4 HP
ELEVATION STYLE: Jack Screw Rail Slide System
ELEVATION SYSTEM: CH525 Digital Controller
TOTAL MACHINE HP: 42.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220V Control Voltage
MIN. WORKING LENGTH: 23''
MAX. WORKING WIDTH: 12''
MIN. WORKING THICKNESS: 1/2'' Blade to Blade, 1/16'' Minimum Cut single Blade
MAX. WORKING THICKNESS: 10''
BLADE SIZE: 1'' x 158''
NO. OF TEETH ON BLADE: 316 Teeth
TOOTH SPACING: 1/2''
BLADE KERF: 1.44 MM
BLADE HOOK: 10 Degree
BLADE SPEED: 6500 FPM
CLEANING SYSTEM: Scrapers on Wheels
TRACKING STYLE: Manual Adjustment
TENSION STYLE: Automatic Hydraulic Tension
DUST PORT SIZE OUTLET: (30) 4'' Ports
ARBOR DIAMETER: 2-1/4''
DIGITAL DISPLAY: Elevation
HOLD DOWN STYLE: Pneumatic Hold Down Rollers
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
FENCE TYPE: Fixed
FENCE DIMENSIONS: 6-3/4'' x 34-1/2''
BLADE WHEEL DIMENSIONS: 28-1/2''
WHEEL DIMENSIONS: 28-1/2''
WHEEL CONSTRUCTION: Cast
FRAME CONSTRUCTION: 1/4'' Steel
DECIBEL RATING: 75 dB
NET WEIGHT: 3456 Lbs.
GROSS WEIGHT: 3749 Lbs.
MACHINE DIMENSIONS: 84'' x 110'' x 80''
PACKAGING DIMENSIONS: Crate (1) 91'' x 50'' x 83'' 3154 Lbs. Crate (2) 117'' x 27'' x 34'' 487 Lbs.
