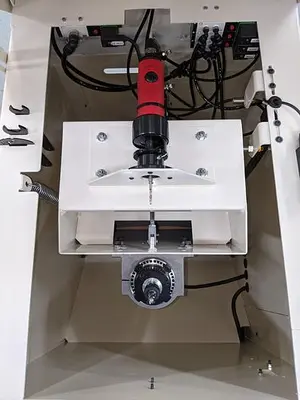

NEW RITTER R2063

The R2063 is used for routing a single pocket hole for cabinet face frame assembly. Standard Features: 6° Low angle PLC controlled cycle Foot pedal operated Adjustable Material Stops Up to 2″ thick material Cycle Time: 1.75 – 2 Sec Tooling Included Additional options for this machine include: 48″ Wide Table R2061 – 1-Phase 120 Volt

Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,000 RPM, 8 A, 2 HP
Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
Electrical: 230V, 3Ø, 10A
Air: 5.5 CFM at 80 – 100 PSI
Work Height: 36''
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port Diameter: 4''
Shipping Weight: 300 LBS
Shipping Dimensions (L x W x H): 38″ x 25″
