NEW NORTHTECH NT HBR-12E HORIZONTAL BANDSAW

The Northtech NT HBR-12E Horizontal Bandsaw features a 20 HP motor driving the 168″ (L) blade at 6850 FPM. The VFD-controlled 2 HP feed conveyor can be precisely set to speeds between 0 to 97 FPM. The sturdy frame is constructed from CNC machined steel, and the 1” x 28” CNC ground steel saw wheels have been specially heat-treated and balanced for vibration-free performance.

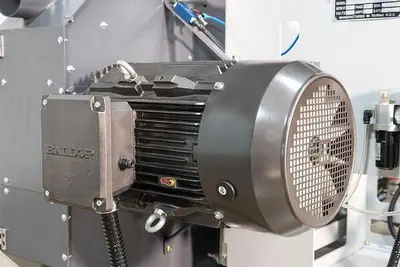

Main Motor: 20 hp.
Voltage/ Freq.: 230 / 460V
Phase: 3 Phase
Feed Hp.: 2 Hp.
Feed System: 11-1/4” Rubber Feed Mat
Feed Speed: 0 – 95 FPM

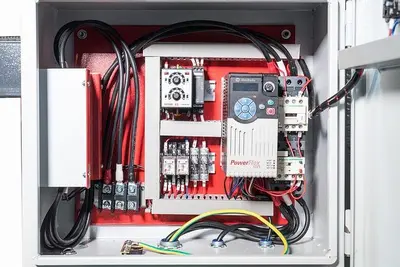

Variable Speed: Inverter Controlled
Elevation Style: Manual Crank Adjustment
Elevation System: Scissor Lift
Total Hp.: 22 Hp.
Electronics: CE Approved Components
Control Voltage: 220V Control Voltage
Operator Panel: Fixed
Pass-Line: 35-3/8”
Cut Envelope: 11-3/4” W x 11” H
Min. Stock Length: 12''
Min. Stock Width: 3/4''
Max. Stock Width: 11-3/4”
Min. Stock Thickness: 3/16″
Max. Stock Thickness: 11''
Blade Size: 1” x 168”
No. of Teeth: 192 Tooth
Tooth Spacing: 7/8”
Blade Kerf: 1mm
Blade Speed: 6850 FPM
Cleaning System: Scraper / Felt Pad
Tracking Style: Manual Adjustment
Tension Style: Manual Adjustment
Vertical Travel: 4-5/8”
Dust Collection: (4) 4” @ 1744 CFM

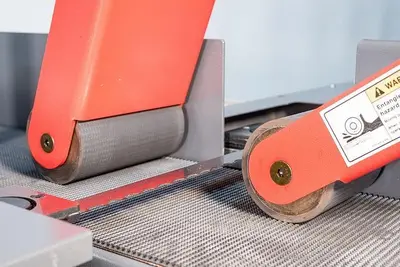

Hold Down Style: Pneumatic / Gravity

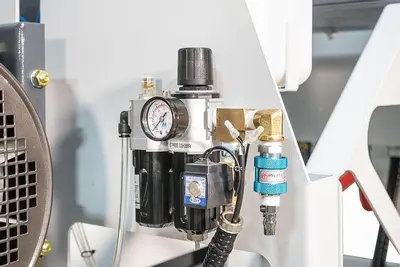

FLR Included: Filter, Lubricator, Regulator
Recommended CFM: 1/4” Line @ 90 PSI
Emergency Stop: Push Button
Guarding: Full Cabinet Enclosure
Oiler: Blade Oil Mister
Fence Type: Fixed Fence
Fence Dimensions: 6-3/4” x 34-1/2”
Blade Guides: Bearing Blade Guide
Wheel Dimensions: 1” x 28”
Wheel Construction: Steel Construction
Frame Construction: Steel Construction
Table Construction: Steel Construction
Decible Rating: 75 dB
Net weight: 1930 Lbs.
Gross Weight: 2298 Lbs.
Machine Dimensions: 109” x 80” x 53”
Packaging Dimensions: 2 Skids
