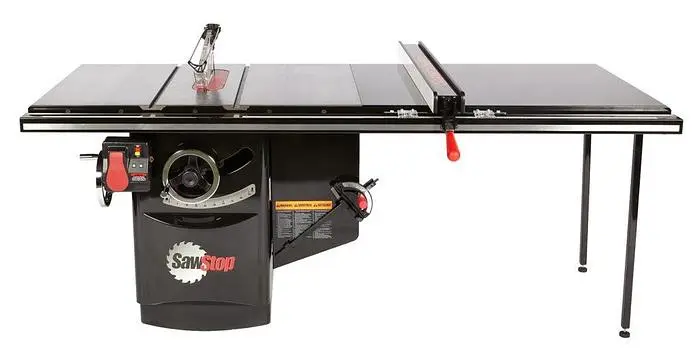

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 7.5 HP, 3 ph, 480V configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide. Features SawStop’s patented safety system Riving knife reduces the risk of kickback Tool-free quick-change blade guard mount Diagnostic system ensures the saw is ready to respond Dust-Collection Blade Guard 52" Industrial T-Glide Fence System
| Weight | 685 lbs. | 685 lbs. |
Motor: 7.5 HP, 3-phase, 480V 60 HZ
Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H
Cast-iron table: 24" W x 30" D
Cast-iron table size with extension wings: 44" W x 30" D
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Table in front of blade (max. elevation): 11"
Table behind blade (max. elevation): 9-3/4"
Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Insert: Zero Clearance, Phenolic Core, Melamine Surfaces
Blade: 60-tooth, professional-grade, 5/8" arbor
Dust-collection port diameter: 4"
Belts: 2 V-ribbed belts
Riving knife/splitter thickness: 0.090" (2.3mm)
Table flatness measured diagonally: 0.010" maximum gap
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Blade diameter: 10"
Blade tilt: left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078"
Cabinet footprint: 20" x 25"
