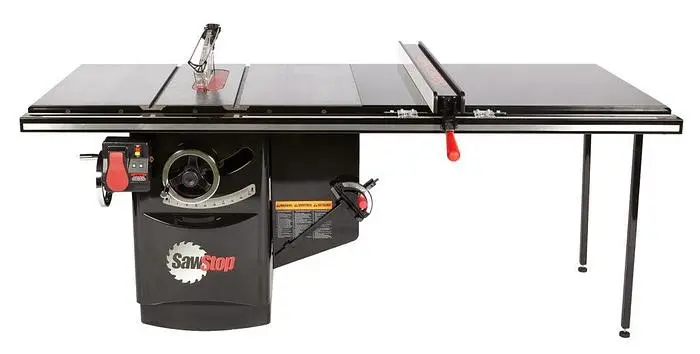

DETAILS The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 7.5 HP, 3 PH, 230V configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide. Features SawStop’s patented safety system Riving knife reduces the risk of kickback Tool-free quick-change blade guard mount Diagnostic system ensures the saw is ready to respond Dust-Collection Blade Guard 52" Industrial T-Glide Fence System Specifications Motor: 7.5 HP, 3-phase, 230V 60 HZ Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H Cabinet footprint: 20" x 25" Cast-iron table: 24" W x 30" D Cast-iron table size with extension wings: 44" W x 30" D Blade: 60-tooth, professional grade, 5/8" arbor Blade diameter: 10" Blade tilt: left Blade kerf: 0.118" (3mm) Blade plate thickness: 0.078" Max. depth of cut, blade at 0º: 3-1/8" Max. depth of cut, blade at 45º: 2-1/4" Max. rip, left of blade: 12-1/2" Dado diameter: 8" (requires a separate brake cartridge and table insert) Dado max. width: 13/16" Arbor diameter at blade: 5/8" Table in front of blade (max. elevation): 11" Table behind blade (max. elevation): 9-3/4" Table flatness measured diagonally: 0.010" maximum gap Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep Dust-collection port diameter: 4" Riving knife/splitter thickness: 0.090" (2.3mm) Insert: zero clearance, phenolic core, melamine surfaces Belts: 2 V-ribbed belts Weight: 685 lbs.
