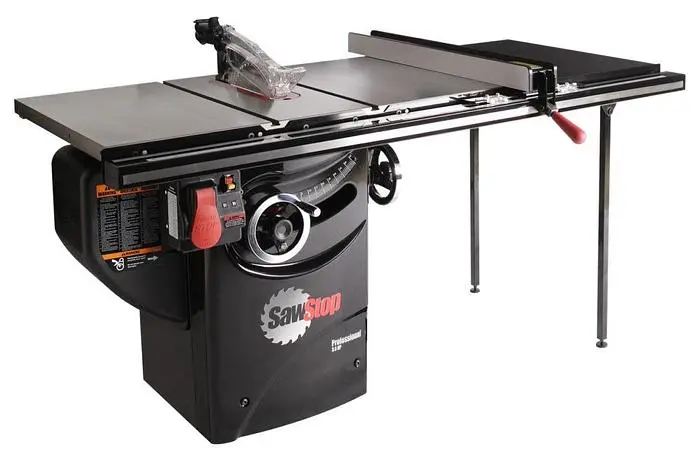

NEW SAWSTOP PCS31230-TGP236

The SawStop 230V, 3 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 230V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality, and industry-leading dust collection, the 230V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop. Features: • SawStop’s patented safety system • Riving knife reduces the risk of kickback • Tool-free quick-change blade guard mount • Diagnostic system ensures the saw is ready to respond • Dust-Collection Blade Guard • 36" Professional T-style Fence system • 3 HP motor 1-phase, 230V 13A Table Saw Specifications:

Overall Saw Dimensions: 69-1/8" x 33" x 34"
Cast-Iron Table: 20" w x 27" d
Cast-Iron Table Size With Extension Wings: 44" w x 27" d
Motor: 3 HP, 1-Phase, 230V, 13A
Blade: 40-tooth, professional grade, 5/8" arbor
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, left of blade: 12''
Dado Diameter: 8" (requires a separate brake cartridge and table insert)
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Blade Guard: polycarbonate, extends only 5/8" to right of blade
Insert: zero clearance, steel core, ABS surfaces
Belts: 2 V-ribbed belts – arbor belt is static dissipative
Dust-collection port diameter: 4"
Riving knife/splitter thickness: 0.078" (2mm)
Table flatness measured diagonally: 0.010" maximum gap
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Blade Diameter: 10"
Blade Tilt: left
Blade Kerf: 0.118" (3mm)
Blade Plate Thickness: 0.078"
Cabinet Footprint: 19-3/8" x 19-3/8"
