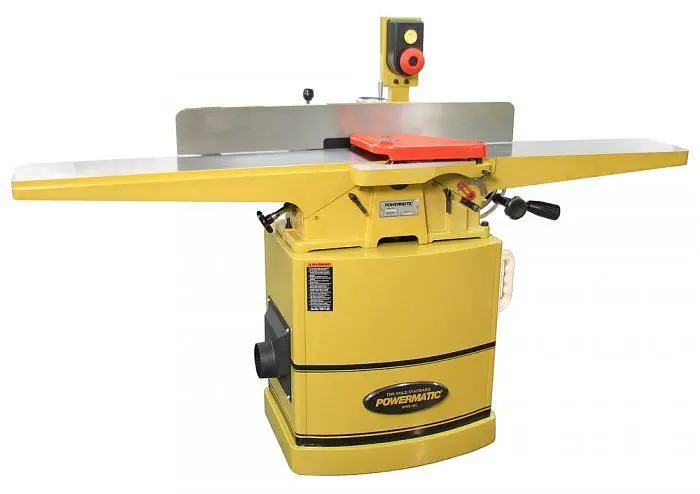

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access. Features Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth Extra long tables are mounted on dovetailed ways for extended workpiece support Handwheel operated worm gear system for smooth fence tilting High mount switch for operator convenience Magnetic push blocks can be stored on the machine within constant reach Non-mar fence insert protects table surface The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish
Cuts Per Minute: Not Applicable
Cutterhead Diameter (In.): 3
Cutterhead Speed (RPM): 7000
Cutting Capacity (W x D) (In.): 8 x 1/2
Dust Collection: 450 CFM
Dust Port Diameter: 4''
Infeed Table Length (In.): 35-1/4
Motor Amps: 9
Motor Phase: 1
Motor Power (HP): 2
Motor Voltage (V.): 230
Number of Knives: 54
Prewired Voltage (V.): 230
Recommended Circuit Size (Amps.): 20
Type of Cutterhead: HELICAL
