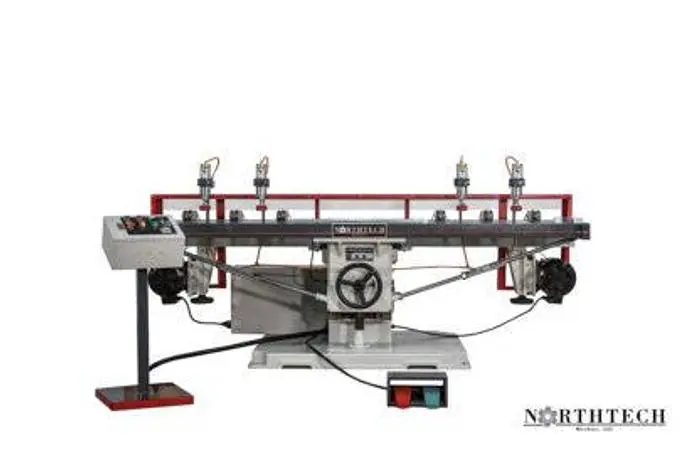

NEW NORTHTECH NT-HBSS280

NT-HBSS280 BORING MACHINE HORIZONTAL The NT HBSS-280 is a heavy duty horizontal boring machine. The multiple boring head configuration is adjustable for varying hole layouts for customer flexibility. Rugged cast iron base for a solid footing and decades of performance. Pneumatic hold downs and drill cycle. Ideal for panel, softwood, hardwood and plastic products MACHINE HP: (2) 2 HP VOLTAGE, FREQUENCY: 230/460 Volt 60HZ PHASE: 3 Phase AMP REQUIREMENT: 6/3 Amps SPINDLE ARRANGEMENT: (6) Inline Spindles SPINDLE DIAMETER: 1/2'' Chuck SPINDLE RPM: 4200 RPM ELEVATION STYLE: Manual Wheel Adjustment APPROVED ELECTRICAL PARTS: CE Approved Parts DUAL VOLTAGE MOTORS: 230/460 Volt CONTROL VOLTAGE: 24 Volt ADJUSTABLE OPERATOR PANEL: Movable Pedestal MAX. WORKING LENGTH: 90'' MAX. WORKING THICKNESS: 4-1/2'' HOLD DOWN STYLE: Pneumatic Clamps TOTAL CLAMPS: (4) FLR INCLUDED: Filter, Lubricator, Regulator CFM AIR SUPPLY REQUIREMENT: 1/4'' line @ 90 PSI EMERGENCY STOP: (2) OPERATION STYLE: Foot Pedal FENCE TYPE: Adjustable STROKE LENGTH: 5-1/4'' FRAME CONSTRUCTION: Cast WORKTABLE DIMENSIONS: Cast DECIBEL RATING: 52.3 NET WEIGHT: 2081 Lbs. GROSS WEIGHT: 2268 Lbs. MACHINE DIMENSIONS: 97'' x 58'' x 49'' PACKAGING DIMENSIONS: 99'' x 53'' x 46''

MACHINE HP: (2) 2 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 6/3 Amps
SPINDLE ARRANGEMENT: (6) Inline Spindles
SPINDLE DIAMETER: 1/2'' Chuck
SPINDLE RPM: 4200 RPM
ELEVATION STYLE: Manual Wheel Adjustment
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
ADJUSTABLE OPERATOR PANEL: Movable Pedestal
MAX. WORKING LENGTH: 90''
MAX. WORKING THICKNESS: 4-1/2''
HOLD DOWN STYLE: Pneumatic Clamps
TOTAL CLAMPS: (4)
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' line @ 90 PSI
EMERGENCY STOP: (2)
OPERATION STYLE: Foot Pedal
FENCE TYPE: Adjustable
STROKE LENGTH: 5-1/4''
FRAME CONSTRUCTION: Cast
WORKTABLE DIMENSIONS: Cast
DECIBEL RATING: 52.3
NET WEIGHT: 2081 Lbs.
GROSS WEIGHT: 2268 Lbs.
MACHINE DIMENSIONS: 97'' x 58'' x 49''
PACKAGING DIMENSIONS: 99'' x 53'' x 46''
