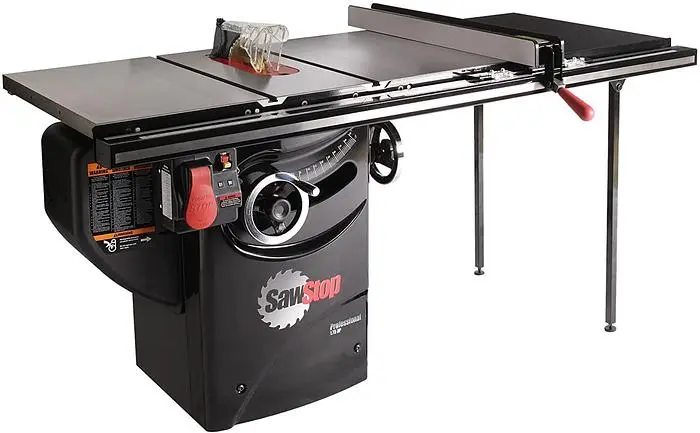

The SawStop 110V, 1-3/4 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop. Features: • SawStop’s patented safety system • Riving knife reduces the risk of kickback • Tool-free quick-change blade guard mount • Diagnostic system ensures the saw is ready to respond • Micro Blade Guard • 36" Professional T-style fence system • 1 3/4 HP motor 1-phase, 120V 14A Table Saw Specifications: Overall saw dimensions: 69-1/8" x 33" x 34" Cabinet footprint: 19-3/8" x 19-3/8" Cast-iron table: 20" w x 27" d Cast-iron table size with extension wings: 44" w x 27" d Motor: 1 3/4 HP, 1-phase, 110V, 14A Weight: 408 lbs. Blade: 40-tooth, professional grade, 5/8" arbor Blade diameter: 10" Blade tilt: left Blade kerf: 0.118" (3mm) Blade plate thickness: 0.078" Max. depth of cut, blade at 0º: 3-1/8" Max. depth of cut, blade at 45º: 2-1/4" Max. rip, left of blade: 12" Dado diameter: 8" (requires a separate brake cartridge and table insert) Dado max. width: 13/16" Arbor diameter at blade: 5/8" Table in front of blade (max. elevation): 10-1/4" Table behind blade (max. elevation): 7-1/2" Table flatness measured diagonally: 0.010" maximum gap Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep Dust-collection port diameter: 4" Riving knife/splitter thickness: 0.078" (2mm) Blade guard: polycarbonate, extends only 5/8" to right of blade Insert: zero clearance, steel core, ABS surfaces Belts: 2 V-ribbed belts – arbor belt is static dissipative
