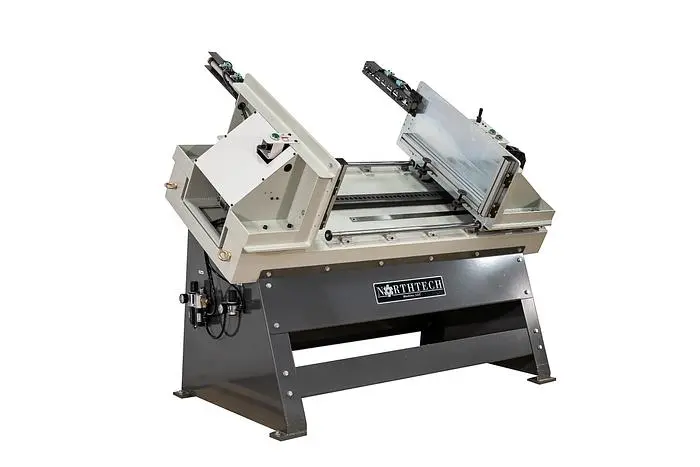

NT DBC102540 Drawer Box Clamp • Universal drawer box clamp with fixed left side clamp • Manually adjustable right side clamp • Working Capacity (LxWxH): 10” x 25” x 40” • Two stage clamping for smooth operation • Two hand push button operation for added operator safety • Rapid set opening means no tools needed for changeovers • Capable of top and bottom drawer building • Suitable for assembling dovetail and dowel construction boxes • Machine dimensions (LxWxH): 74” x 37” x 56” • Machine/Packaging weight: 800lbs / 1,200lbs • Operation and Parts Manual included • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up. • Northtech offers a full line of drawer building machinery, ask your salesman for information of Box Sanders, Drawer Notchers or Dovetailers
