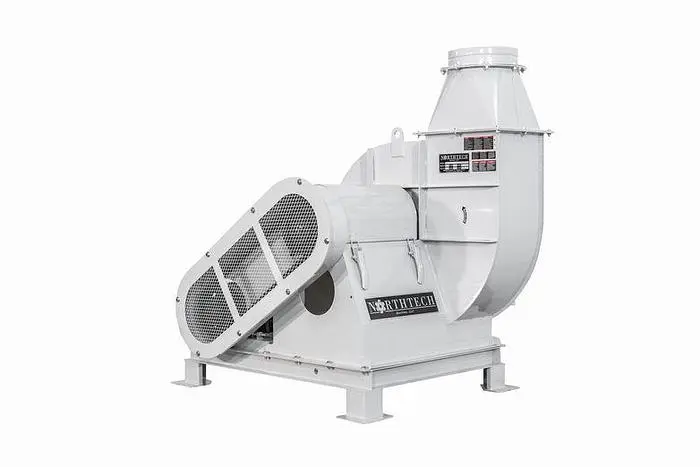

The NT TB5XL is our 5HP belt driven transfer blower with a fabricated steel housing. The belt drive allows customer the ability to change fan speeds with out the use of an inverter. Northtech transfer blowers come with square to round connection fittings, steel frame and controls.
Machine Hp.: 5 hp.
Voltage/ Freq.: 230/460 Volt 60HZ
Phase: 3 Phase
Amp Requirement: 12.9 Amps
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 220V Control Voltage
Assisted Start: Wye Delta
Dust Port In: 10” Inlet
Dust Port Out: 12” Inlet
Impeller: 6” x 20”
Decible Rating: 77 dB
Net Weight: 606 Lbs.
Gross Weight: 730 Lbs.
Machine Dimensions: 53” x 42” x 55”
Packaging Dimensions: 59” x 43” x 50”
