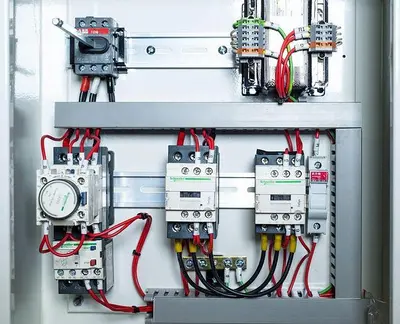

The NT TB15XL is our 15HP belt driven transfer blower with a fabricated steel housing. The belt drive allows customer the ability to change fan speeds with out the use of an inverter. Northtech XL transfer blowers come with square to round connection fittings, steel frame and controls.
Machine Hp.: 15 hp.
Voltage/ Freq.: 230 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 35 Amps
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 220V Control Voltage
Assisted Start: Wye Delta
Operator Panel: Remote Mount
Dust Port In: 14” Inlet
Dust Port Out: 15”
Impeller: 8” x 25” 10 Fin
Frame Const.: Welded Steel
Decible Rating: 80 dB
Net Weight: 639 Lbs.
Gross Weight: 788 Lbs.
Machine Dimensions: 46” x 57” x 64”
Packaging Dimensions: 47” x 66” x 50”
