The NT TB25XL is our 25HP belt driven transfer blower with a fabricated steel housing. The belt drive allows customer the ability to change fan speeds with out the use of an inverter. Northtech XL transfer blowers come with square to round connection fittings, steel frame and controls.
Machine Hp.: 25 Hp.
Voltage/ Freq.: 230 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 60.2 Amps
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt

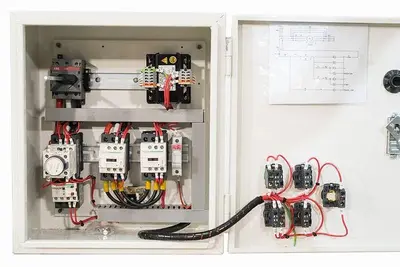

Control Voltage: 220V Control Voltage
Assisted Start: Wye Delta
Dust Port In: 18” Inlet
Dust Port Out: 18” Outlet
Impeller: 6” x 27” Impeller
Decible Rating: 82 dB
Net Weight: 1385 Lbs.
Gross Weight: 1465 Lbs.
Machine Dimensions: 76” x 49” x 63”
Packaging Dimensions: 73” x 48” x 71”
