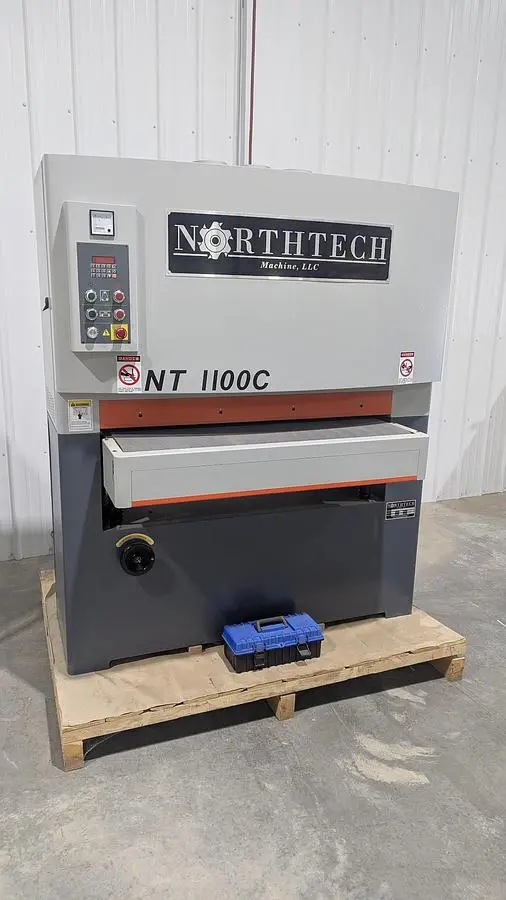

USED NORTHTECH NT-1100C

The NT-1100C single combination head wide belt sander has a 43″ working width and comes standard with 44″ x 75″ belt and variable speed invisible seam feed mat. The combination head provides the benefit of sanding with a roller and platen in side a single head machine footprint. Features heavy steel frame design, digitally positioned elevation control with close to 6″ opening and independent start/stop controls for the feed and belt.

MACHINE HP: 27-1/4 HP
MAIN MOTOR HP: 25 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 72/36 Amps
CONFIGURATION: Combination
1st HEAD: 15 HP 4'' Fluted Drum with Platen
FEED HP: 2 HP
FEED SYSTEM: 43-1/4'' Feed Mat
DRIVE SYSTEM: Gear Box / Variable Speed Pulley
FEED SPEED RANGE: 16-48 FPM
VARIABLE FEED SPEED: Variable Speed pulley
ELEVATION HP: 1/4 HP
ELEVATION STYLE: Digital Readout
ELEVATION SYSTEM: 4 Post Jack Screw
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PASS-LINE: 30-3/4'' - 36-7/16''
MIN. WORKING LENGTH: 11-1/2''
MAX. WORKING WIDTH: 43''
MIN. WORKING THICKNESS: .155''
MAX. WORKING THICKNESS: 6
SANDPAPER SIZE: 43-1/4'' x 75''
PLATEN SPECIFICATIONS: 1-3/4'' x 44''
DRUM SPECIFICATIONS: 4'' Spiral Fluted 65 Durometer
1st BELT SPEED: 2285 FPM
OSCILLATION STYLE: Electric Photo Eye
OSCILLATION TRAVEL: 3/4''
CLEANING SYSTEM: Jet Blow Off on Photo Eye
TRACKING STYLE: Pneumatic
TENSION STYLE: Pneumatic
DUST PORT SIZE OUTLET: (4) 5'' Ports
DIGITAL DISPLAY: Elevation
CONVEYOR: 43-1/4'' Feed Mat
IDLE ROLLERS: (2)
PRESSURE SHOES: (2)
HOLD DOWN STYLE: (2) Rubber Rollers / (2) Pressure Shoes
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: Push Button
GUARDING: Full Enclosure
BRAKE SYSTEM: Dual Pneumatic Caliper
FRAME CONSTRUCTION: 1/4'' Steel
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 78 dB
NET WEIGHT: 2390 Lbs.
GROSS WEIGHT: 2687 Lbs.
