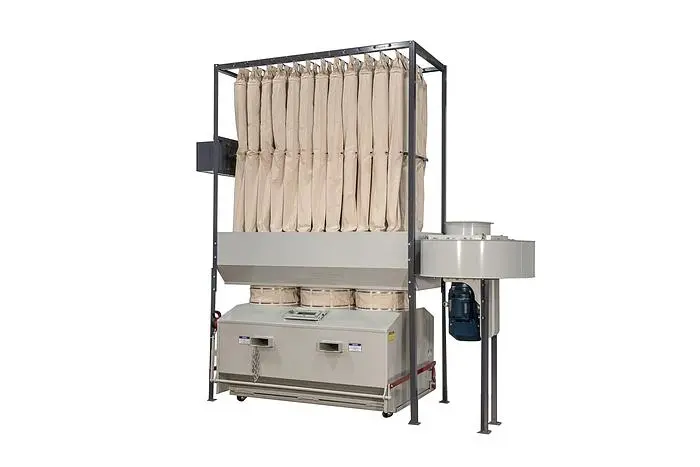

NT-DC7SS Available in a 5hp, 7-1/2hp, 10hp and 15hp Dust Collector with Enclosureless Baghouse and Soft Sound Technology • Direct Drive Blower, 7.5HP 3PH, 208-230/460V 60HZ • Fan performance: 1800RPM 5,000 CFM @ 3” WC ESP (External Static Pressure) 4,500 CFM @ 4.5” wc ESP 3,500 CFM @ 8” wc ESP • 12” Ø Inlet @ 3,500 CFM standard • 26” Ø Steel fabricated fan wheel is dynamically balanced • Mechanical shaker included • (48) 5” x 69” Cotton sateen filter tubes • 340SF of filter media • (2) 22-1/2” x 40” plastic waste bags disposal • Air Velocity: 3648fpm • Northtech is proud to manufacture this product in America • 95% Return-air efficiency of 2.5 micron particles • (Optional) Motorized mechanical filter shaker is 1/4HP TEFC motor
