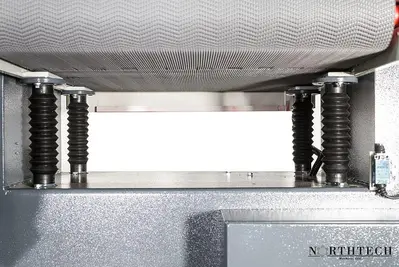

NEW NORTHTECH NT-900C

The NT-900C single combination head wide belt sander has a 36″ working width and comes standard with 37″ x 75″ belt and variable speed invisible seam feed mat. The combination head provides the benefit of sanding with a roller and platen in side a single head machine footprint. Features heavy steel frame design, digitally positioned elevation control with close to 6″ opening and independent start/stop controls for the feed and belt.

MACHINE HP: 16-1/4 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 41/20.5 Amp
1st HEAD: 15 HP 4'' Fluted Drum with Platen
FEED HP: 1 HP.
FEED SYSTEM: 36-1/2'' Feed Belt
DRIVE SYSTEM: Motor / Gear Box / Variable Speed Clutch
FEED SPEED RANGE: 15-35 FPM
VARIABLE FEED SPEED: Adjustable Pulley
ELEVATION HP: 1/4 HP
ELEVATION STYLE: Digital Readout
ELEVATION SYSTEM: 4 Post Jack Screw
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
MIN. WORKING LENGTH: 13''
MAX. WORKING WIDTH: 36''
MIN. WORKING THICKNESS: .155''
MAX. WORKING THICKNESS: 6''
SANDPAPER SIZE: 37'' x 75''
PLATEN SPECIFICATIONS: 1-3/4'' x 38''
DRUM SPECIFICATIONS: 4'' Spiral Fluted 65 Durometer
1st BELT SPEED: 2625 FPM
OSCILLATION TRAVEL: 3/4''
CLEANING SYSTEM: Jet Blow Off on Tracking Sensor
TRACKING STYLE: Pneumatic Cylinder / Photo Eye
TENSION STYLE: Pneumatic Cylinder
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (3) 5'' Ports
DIGITAL DISPLAY: Elevation Controller
PRESSURE SHOES: (2)
HOLD DOWN STYLE: Pressure Shoe / Rollers
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @90 PSI
EMERGENCY STOP: Push Button
GUARDING: Full Enclosure
BRAKE SYSTEM: Single Pneumatic Caliper
FRAME CONSTRUCTION: 1/4'' Steel
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 77 dB
NET WEIGHT: 1676 Lbs.
GROSS WEIGHT: 1968 Lbs.
MACHINE DIMENSIONS: 53'' x 50'' x 74''
PACKAGING DIMENSIONS: 57'' 52-1/2'' x 84''
