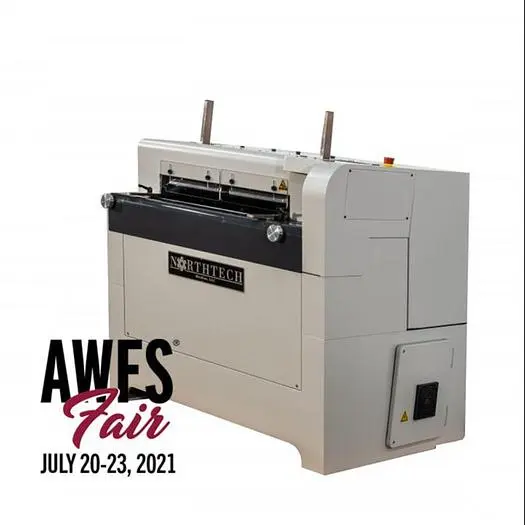

NEW NORTHTECH NT-IDOVETAL24

Contact us for a detailed quote and spec sheet of this amazing machine or to schedule a live or zoom demo. The iDovetail from Northtech is single-spindle CNC dovetailer with a three-axis system that gives it additional capabilities. iDovetail has eight profile modes that provide options from fixed pitch dovetails to mitered mortise and tenon joinery or even custom profiles such as stair tread returns. It uses a user-friendly Windows-based interface with a built-in animated tutorial. The eight-mode interactive platform offers users the ability to make a variety of joinery on boxes, face frames or case goods on the fly through a touchscreen that uses common smartphone gestures such as pinch to zoom and swipes to spin the profile on any axis to see all sides of the parts. This is designed to allow the operator to see the actual joint they are creating with a real-time 3D rendering that can be changed by a simple touch of a dimension. Having this unique capability to see the assembly before any parts are run allows the operator to see potential defects before they make them, according to Northtech. The product won a 2021 AWFS Visionary Award.

MACHINE HP: 6 HP
DIRECT DRIVE (MOTOR): Direct Drive Servo Motor
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 8 / 18 Amps
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: Dual Voltage Taps
CONTROL VOLTAGE: 220 Volt
MIN. WORKING LENGTH: 9-1/2''
MIN. WORKING WIDTH: 1''
MAX. WORKING WIDTH: 24''
MIN. WORKING THICKNESS: 0.39'' Mode 6 , All Other Modes 0.2''
MAX. WORKING THICKNESS: 1.97''
MAX DEPTH MORTISE: 1.97''
MAX WIDTH MORTISE: 23''
DUST COLLECTION REQUIREMENT: 436 CFM @ Point of Extraction
DUST PORT SIZE OUTLET: (2) 4'' Ports
TOTAL CLAMPS: (4) Clamps
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
EMERGENCY STOP: Push Button
GUARDING: Full Enclosure
OPERATION STYLE: Automatic
FENCE TYPE: Top Fixed Bottom Adjustable
FENCE DIMENSIONS: Top 1-1/2 x 13-1/2'' Bottom 1/2'' x 11-1/2''
MICRO FENCE: Bottom Micro Adjustable Fence
FRAME CONSTRUCTION: Steel Construction
MACHINE DIMENSIONS: 47'' x 44'' x 47''
PACKAGING DIMENSIONS: 53'' x 47'' x 55''
