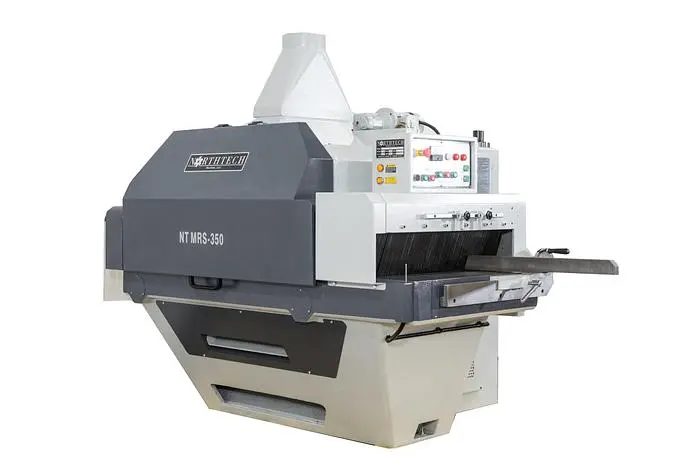

The NT MRS350 Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Sometimes referred to as gang rip saws, this machine has easy maintenance and change overs with a high rise arbor access hood. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.
MAIN MOTOR HP: 50 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 64/32 Amps
FEED HP: 2/1 Hp. 2 Speed
FEED SYSTEM: 12'' Dip Chain
FEED SPEED RANGE: 25 - 100 FPM
VARIABLE FEED SPEED: Manual Wheel Adjustment
ELEVATION HP: 1/2 Hp.
ELEVATION STYLE: Jack Screw / Linear Guides
TOTAL MACHINE HP: 52.5 Hp.
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
PASS-LINE: 29-1/4''
CUTTING ENVELOPE: 5-1/4'' x 33''
MIN. WORKING LENGTH: 17''
MAX. WORKING WIDTH: 33''
MAX. WORKING THICKNESS: 5-1/4''
ARBOR RPM: 3775 Rpm.
BLADE SIZE: 14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 30 Tooth
TOOTH SPACING: 1-1/8''
BLADE KERF: .130 In.
DUST PORT SIZE OUTLET: (1) 8'' Port
ARBOR DIAMETER: 70 MM
HOLD DOWN STYLE: (4) Spring Loaded Rollers, Pressure Shoe
KICKBACK FINGERS: (2) Top Sets (1) Bottom Set
REAR E STOP: Push Button
SAFETY FEATURE: Sawblade Door Safety Interlock
GUARDING: Full Cabinet Enclosure
OILER: Auto Oiler
LOW OIL WARNING/SHUT OFF: Low Oil Shut Off / Warning
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 4'' x 27-1/2''
FRAME CONSTRUCTION: 3/4'' Steel Construction
WORKTABLE DIMENSIONS: 31'' x 73''
TABLE CONSTRUCTION MATERIAL: Cast Iron
LASER INCLUDED: 100mw Laser Light & Mount Bracket
DECIBEL RATING: 69 dB
NET WEIGHT: 6160
GROSS WEIGHT: 6400 Lbs.
MACHINE DIMENSIONS: 76'' x 67'' x 60''
