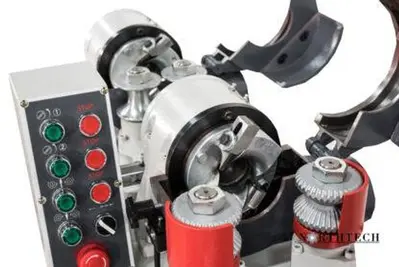

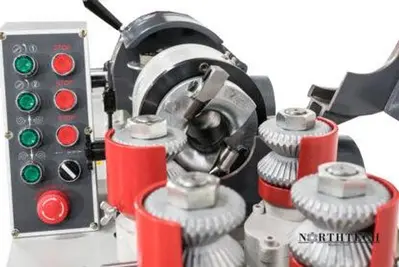

NEW NORTHTECH NT-RM60-2SS

NT-RM60-2SS ROD MILLING DOUBLE HEAD The NT RM60-2SS rod milling machine is designed to take square stock to round stock. Unlike a traditional moulder, the round rod machine is designed for perfectly cylindrical outputs. The 2 head design allows for greater stock removal while still providing a smooth finish. Heavy duty cast iron and steel construction is designed for industrial applications. Can be used for softwood, hardwood, acrylics and plastics.

MACHINE HP: 14.5 HP
REVERSIBLE MOTOR: Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 34/17 Amps
1st HEAD: 7.5 HP
2nd HEAD: 5 HP
FEED HP: 2 HP
FEED SYSTEM: (8) Powered Rollers
DRIVE SYSTEM: Gear Box / Chain Drive
FEED SPEED RANGE: 16-50 FPM
VARIABLE FEED SPEED: 4 Speed Transmission
REVERSIBLE FEED: Yes
ELEVATION STYLE: Manual Wheel Adjustment
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 32''
CUTTING ENVELOPE: 6-60 MM
MIN. WORKING LENGTH: 24''
MAX WORKING DIAMETER: 60 MM
MIN WORKING DIAMETER: 6 MM
TOOLING: Under 42 MM 12 MM Knives Over 43 MM 18 MM Knives
INSERT SIZE: 12 or 18 MM
DUST PORT SIZE OUTLET: (2) 4''
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
POWERED ROLLERS: (8) Powered Rollers
EMERGENCY STOP: (1) Push Button
GUARDING: Head Enclosure
DECIBEL RATING: 82 dB
NET WEIGHT: 1196 Lbs.
GROSS WEIGHT: 1342 Lbs.
MACHINE DIMENSIONS: 60'' x 25'' x 38''
PACKAGING DIMENSIONS: 68'' x 34'' x 46''
