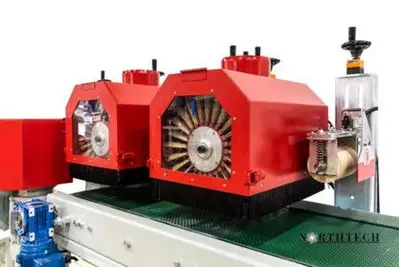

NEW NORTHTECH NT-MBS12-2T1R1OL

MACHINE HP: 5.5 HP.
DIRECT DRIVE (MOTOR): Sanding Heads
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 16.5/8.25 Amps
CONFIGURATION: 2 Top 1 Left 1 Right Opposing
1st HEAD: 1.5 HP 10 x 13'' Sanding Head 740 / 1760 RPM
2nd HEAD: 1.5 HP 10 x 13'' Sanding Head 740 / 1760 RPM
3rd HEAD: 3/4 HP 10'' x 7'' Sanding Head 740 / 1760 RPM
4th HEAD: 3/4 HP 10'' x 7'' Sanding Head 740 / 1760 RPM
FEED HP: (2) 1/4 HP
FEED SYSTEM: 12'' Feed Mat
DRIVE SYSTEM: Gear Box / Feed Mat
FEED SPEED RANGE: 25-105 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION SYSTEM: Manual Wheel Crank
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
PASS-LINE: 33-3/4''
MIN. WORKING LENGTH: 16'' Single Piece Feed
MAX. WORKING THICKNESS: 6''
HEAD TYPE: Insert Brush Head
SANDPAPER SIZE: 2-1/2'' x 13'' x 24 Pcs. Per Head
DUST COLLECTION REQUIREMENT: 681 CFM @ 5'' Ports 436 CFM @ 4'' Ports
DUST PORT SIZE OUTLET: (2) 5'' Top (2) 4'' Side Ports
DIGITAL DISPLAY: Feed Speed
CONVEYOR: 12'' Conveyor
POWERED ROLLERS: (1) Rear Powered Roller
IDLE ROLLERS: (4) Idle Rollers
HOLD DOWN STYLE: Spring Loaded Rollers
EMERGENCY STOP: (1)
GUARDING: High Visibilty Guarding
FENCE TYPE: Fixed
TILT-ABLE: 45 Degrees Heads 3, 4
DECIBEL RATING: 57 dB
NET WEIGHT: 992 Lbs.
GROSS WEIGHT: 1254 Lbs.
MACHINE DIMENSIONS: 61'' x 65'' x 55''
PACKAGING DIMENSIONS: 66'' x 54'' x 61''
