NT-RM60 ROD MILLING 1st Gear 16 FPM 2nd Gear 25 FPM 3rd Gear 35 FPM 4th Gear 50 FPM
MACHINE HP: 12 HP.
REVERSIBLE MOTOR: Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 29.4/14.7 Amps

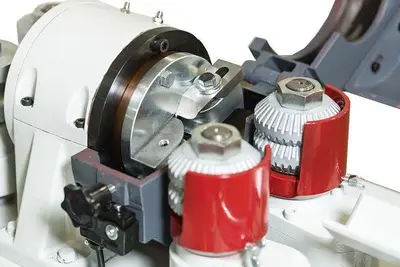

1st HEAD: 3-1/8'' HSS Cutterhead
FEED SYSTEM: Infeed/Outfeed Rollers

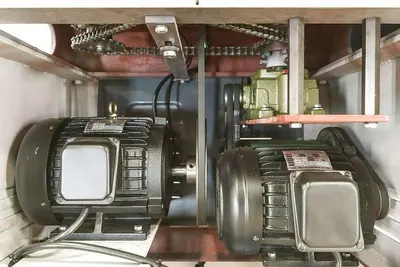

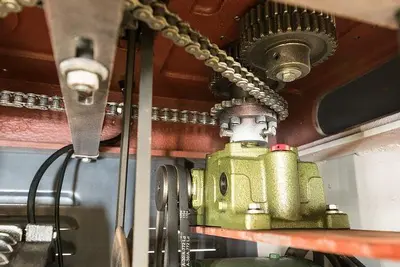

DRIVE SYSTEM: Gear Box Chain Drive
FEED SPEED RANGE: 10-30 FPM
VARIABLE FEED SPEED: 4 Speed Transmission
REVERSIBLE FEED: Yes

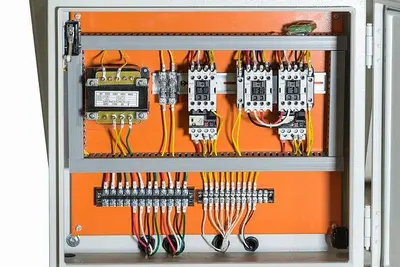

APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 32''
MIN. WORKING LENGTH: 13''
MIN. WORKING THICKNESS: 0.39''
MAX. WORKING THICKNESS: 3.11''
TOOLING: Under 42 MM 12 MM Knives Over 43 MM 18 MM Knives
INSERT SIZE: 12 or 18 MM
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (1) 4'' Port
POWERED ROLLERS: (2) Infeed (2) Outfeed
EMERGENCY STOP: (1)
GUARDING: Cutterhead Enclosure
FRAME CONSTRUCTION: Cast / Steel
DECIBEL RATING: 72 dB
NET WEIGHT: 904 Lbs.
GROSS WEIGHT: 1002 Lbs.
MACHINE DIMENSIONS: 42'' x 27'' x 37''
PACKAGING DIMENSIONS: 45'' x 32'' x 46''
