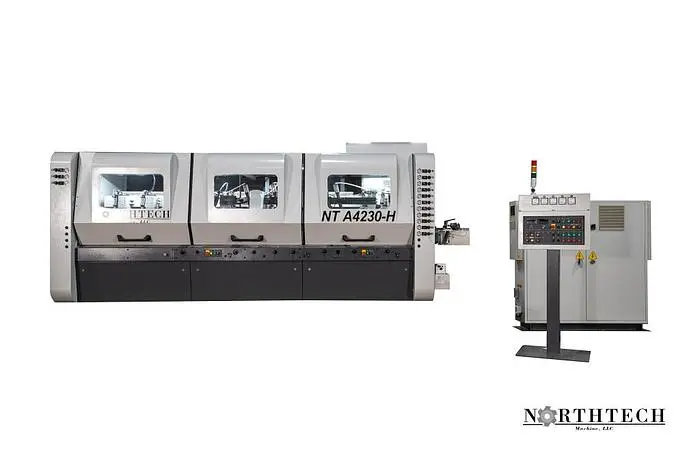

NEW NORTHTECH NT-A4230-H320
Specs
MACHINE HP: 171 HP
REVERSIBLE MOTOR: Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 370/185 Amps
CONFIGURATION: B - L - R - T
1ST SPINDLE: 40 HP Bottom Horizontal
2nd SPINDLE: 25 HP Right Vertical
3rd SPINDLE: 25 HP Left Vertical
4th SPINDLE: 50 Hp. Top Horizontal
SPINDLE DIAMETER: 1-13/16''
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: Horizontal 10'' Vertical 7''
FEED HP: 50 HP

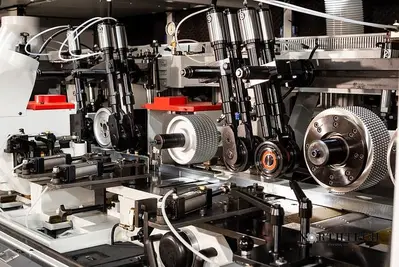

FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers
DRIVE SYSTEM: Gear Box / Carden Shaft
FEED SPEED RANGE: 32-330 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Yes
ELEVATION HP: 1 HP
ELEVATION STYLE: Raise Lower Switch
ELEVATION SYSTEM: (3) Jack Screws / Guides
TOTAL MACHINE HP: 171 HP
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta Heads 1-4
PASS-LINE: 36-1/4''
CUTTING ENVELOPE: 6-1/4'' x 9''
MIN. WORKING LENGTH: 32'' Single Feed
MIN. WORKING WIDTH: 7/16''
MAX. WORKING WIDTH: 9''
MIN. WORKING THICKNESS: 1/4''
MAX. WORKING THICKNESS: 6-1/4''

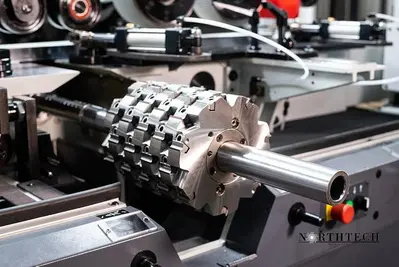

TOOLING: Helical Insert Heads
ROWS OF CUTTERS: 14 Rows
NO. OF INSERTS: 9 '' Head (7) Rows of (4) Inserts (7) Rows of (5) Inserts 4'' Head (14) Rows of (2) Inserts
INSERT SIZE: 30 x 12 x 2.5 MM
DIGITAL DISPLAY: Feed Speed
POWERED ROLLERS: (15) Powered Rollers
PRESSURE SHOES: (2) 4th Head
HOLD DOWN STYLE: Pneumatic
FLR INCLUDED: Filter, Lubricator, Regulator Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (3)
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: (3) Grease Manifolds
OILER: (1) Auto Bed Lube
FENCE TYPE: Adjustable Liquid Cooled
FENCE DIMENSIONS: 83-1/2'' x 1-1/2''
MICRO FENCE: Dial Indicator
FRAME CONSTRUCTION: Cast / Steel Construction
WORKTABLE DIMENSIONS: 10-3/4'' x 189''
TABLE CONSTRUCTION MATERIAL: Cast with Chromed Finish
INFEED TABLE LENGTH: 27-3/4''
NOISE REDUCTION BED PLATE FINGERS: 1st Head
MEASURING METHOD: Siko Counters
DECIBEL RATING: 81
NET WEIGHT: 20000
GROSS WEIGHT: 21000
MACHINE DIMENSIONS: 191'' x 91'' x 82''
PACKAGING DIMENSIONS: 228'' x 90'' x 77''
