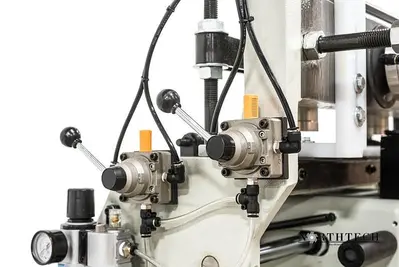

The NT-DTM16M is our entry level dovetail machine. This little unit has a 1HP spindle and 16″ working width and is the ideal solution for smaller production needs. Operator manually moves the single spindle across a precision template with (4) different dovetail patterns. The individually operated pneumatic hold downs securely hold part for processing. Available in120 or 240V 1Ph
MACHINE HP: 1 HP
VOLTAGE, FREQUENCY: 110 Volt 60 Hz
PHASE: 1 Phase
AMP REQUIREMENT: 9.2 Amps
SPINDLE ARRANGEMENT: Single Spindle
SPINDLE DIAMETER: 12 MM Chuck
SPINDLE RPM: 18500 RPM
APPROVED ELECTRICAL PARTS: CE Approved Components
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 46-1/2''
MAX. WORKING WIDTH: 16.5''
MIN. WORKING THICKNESS: 0.28''
MAX. WORKING THICKNESS: 2.36''
TOOLING: 1 Wing Carbide Bit

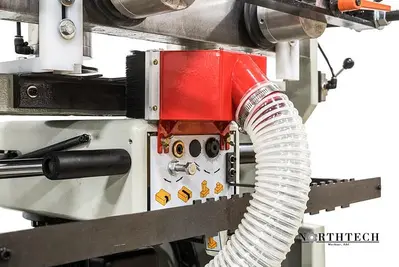

DUST COLLECTION REQUIREMENT: 177 CFM @ Extraction Point
DUST PORT SIZE OUTLET: (1) 2-1/2'' Port
TOTAL CLAMPS: (4)
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
OPERATION STYLE: Manual
FRAME CONSTRUCTION: Steel
NET WEIGHT: 418 Lbs.
GROSS WEIGHT: 500 Lbs.
MACHINE DIMENSIONS: 39'' x 27'' x 58''
PACKAGING DIMENSIONS: 31'' x 43'' x 67''
