MACHINE HP: 3.5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 11.8/5.9 Amps
1ST STATION: 16MM Collet 10MM Bit
2ND STATION: 16MM Collet 10MM Bit
SPINDLE RPM: 11445 RPM
ELEVATION STYLE: Manual Hand Wheel
ELEVATION SYSTEM: Jack Screw
TOTAL MACHINE HP: 3.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PASS-LINE: 36'' Center of Bit
MAX. WORKING THICKNESS: 4'' Max Clamp Thickness
MAX DEPTH MORTISE: 2''
MAX WIDTH MORTISE: 4-1/4''
ARBOR RPM: 11445 RPM
TOOLING: 16mm x 10MM x 100MM Mortising Bit
OSCILLATION STYLE: Coupling Rod
OSCILLATION RATE: 6.6/400 Stroke Per Minute
CLEANING SYSTEM: Jet Blow Off
VERTICAL TRAVEL: 4'' Table Adjustment
DUST COLLECTION REQUIREMENT: 1362 CFM Total
DUST PORT SIZE OUTLET: (2) 5''
HOLD DOWN STYLE: Pneumatic Clamp
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI

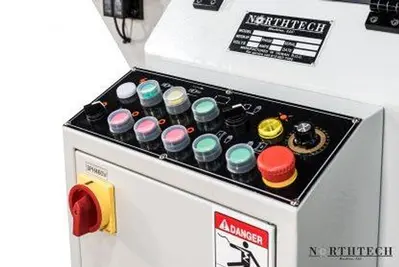

EMERGENCY STOP: Push Button
OPERATION STYLE: Auto/Manual
FENCE TYPE: Fixed
FENCE DIMENSIONS: 3/16'' x 17-1/2''
TILT-ABLE: 20 Degrees on Table
WORKTABLE DIMENSIONS: (2) 11-3/4'' x 17-1/2''
DECIBEL RATING: 74 dB
NET WEIGHT: 1193 Lbs.
GROSS WEIGHT: 1360 Lbs.
MACHINE DIMENSIONS: 52-1/2'' x 50'' x 45''
PACKAGING DIMENSIONS: 54'' x 53'' x 56''
