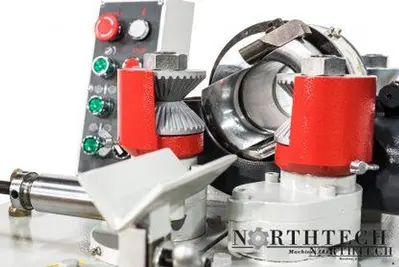

NEW NORTHTECH NT-RM80
Overview
Round Rod Machines are used to process square stock into round rods. The NT-RM80 is a single head Round Rod Machine with a working range of just under 1/2″ to just over 3″. Round Rod Machines can be used on many different products such as wood, plastics and acrylics. multi–speed transmission is standard for varying finish qualities. Unlike moulders, the Round Rod machine produces a truly centric part due to the rotating head design. Larger models available as well as Round Rod Sanders.
Specs
MACHINE HP: 12 HP
MAIN MOTOR HP: 10 HP
REVERSIBLE MOTOR: Reversible Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 29.4/14.7 Amps
1st HEAD: 3-1/8'' HSS Cutter Head
FEED HP: 2 HP
FEED SYSTEM: Powered Infeed Outfeed Rollers
DRIVE SYSTEM: Gear Box to Chain Drive
FEED SPEED RANGE: 10-30 FPM
VARIABLE FEED SPEED: 4 Speed Transmission
REVERSIBLE FEED: Yes
TOTAL MACHINE HP: 12 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 32''
MAX. WORKING LENGTH: 13''
MIN. WORKING THICKNESS: 0.39''
MAX. WORKING THICKNESS: 3.11''
TOOLING: HSS Cutter Knives
NO. OF INSERTS: 2
INSERT SIZE: 18 MM HSS Knives
DUST COLLECTION REQUIREMENT: 436 CFM Total
DUST PORT SIZE OUTLET: (1) 4''
POWERED ROLLERS: Infeed Outfeed Rollers
EMERGENCY STOP: (1) Push Button
FRAME CONSTRUCTION: Cast / Steel
DECIBEL RATING: 72 dB
NET WEIGHT: 904 Lbs.
GROSS WEIGHT: 1002 Lbs.
MACHINE DIMENSIONS: 42'' x 27'' x 37''
PACKAGING DIMENSIONS: 45'' x 32'' x 46''
