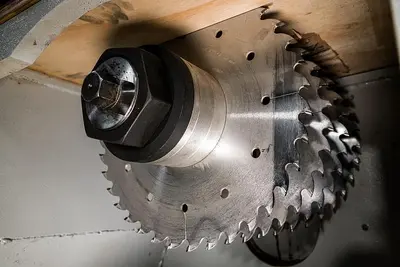

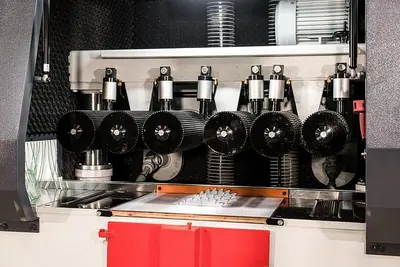

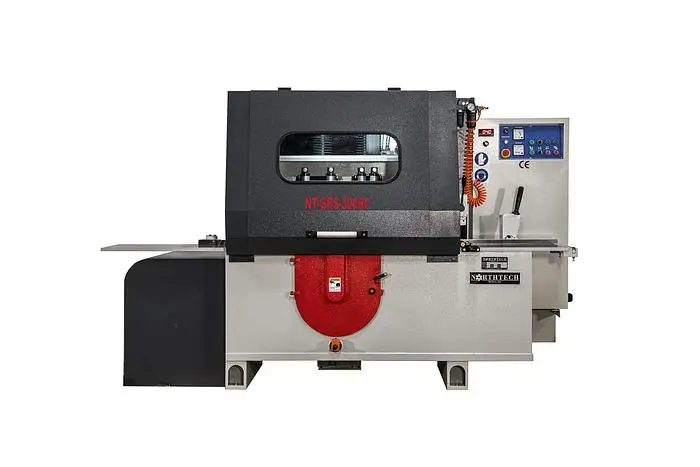

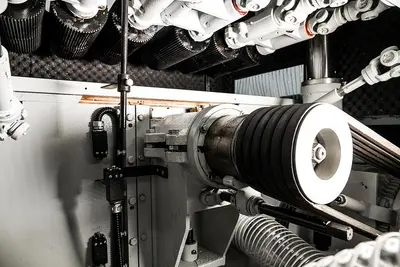

NT GRS300RF Roll Feed Gang Rip Saw • Roll feed drive system with bottom arbor for continuous heavy ripping. • Various motor horsepowers available for any application (25 - 60HP). • 5HP feeding motor allows speed up to 100fpm • (6) sets of top steel feed rollers with independent floating pneumatic cylinders and (2) sets of bed rollers. • Full enclosure for operator safety included • Drive system is powered by a heavy duty gear box drive with cardan shafts, no chains and sprockets to wear. • Entire table is hard chrome plated for optimum wear which is 3 - 4 times greater than normalized iron; a major advantage for constant width material. • 1⁄2 HP powered elevation control, conveniently located at operator station. • Upper and lower limit switches prevent damage to machine from upper assembly. • Spindle is 70mm (2 3⁄4") sleeve style arbor with spacers for quick change setup ((1) included) and can operate with 10" to 18" diameter saw blades (maximum cutting thickness is 4 3⁄4").
MAIN MOTOR HP: 60 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60
PHASE: 3 Phase
AMP REQUIREMENT: 100/50 Amps
FEED HP: 5 HP
FEED SYSTEM: (6) Top (2) Bottom Powered Feed Wheels
DRIVE SYSTEM: Gearboxes / Carden Shaft
FEED SPEED RANGE: 12-160 FPM
ELEVATION HP: 1 HP
ELEVATION STYLE: Push Button
ELEVATION SYSTEM: Jack Screw / Guides
TOTAL MACHINE HP: 66 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Wye Delta 60 HP Motor
PASS-LINE: 32-3/8''
CUTTING ENVELOPE: 6-9/16'' x 14-1/2''
MIN. WORKING LENGTH: 9''
MAX. WORKING WIDTH: 14-1/2''
MIN. WORKING THICKNESS: 1/2''
MAX. WORKING THICKNESS: 6-9/16''
ARBOR RPM: 3000 RPM
BLADE SIZE: 12'' Carbide Tipped
NO. OF TEETH ON BLADE: 27
TOOTH SPACING: 1.05''
BLADE KERF: .178''
DUST PORT SIZE OUTLET: (2) 5'' Ports
ARBOR DIAMETER: 70 MM with 21 MM Key Way
DIGITAL DISPLAY: Feed Speed
POWERED ROLLERS: (8)
HOLD DOWN STYLE: (6) Spring Loaded Feed Wheels
KICKBACK FINGERS: (60) Top (52) Bottom
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line 90 PSI
SAFETY FEATURE: Enclosure with Safety Interlock
GUARDING: Full Enclosure
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 1'' x 87''
FRAME CONSTRUCTION: 1/2'' Steel
WORKTABLE DIMENSIONS: 16-1/2'' x 106''
TABLE CONSTRUCTION MATERIAL: Steel
CHROME BED PLATE: Yes
LASER INCLUDED: 100mw Laser Light & Mount Bracket
DECIBEL RATING: 74 dB
NET WEIGHT: 4247 Lbs.
GROSS WEIGHT: 4742 Lbs.
MACHINE DIMENSIONS: 112'' x 54'' x 71''
PACKAGING DIMENSIONS: 120'' x 61'' x 80''
