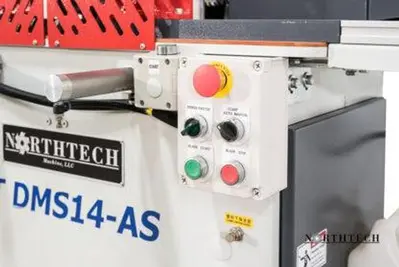

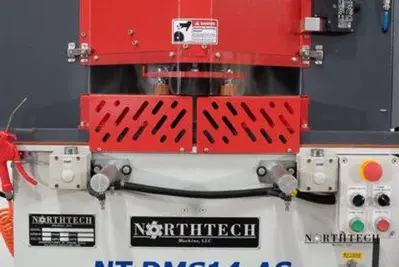

The NT-DMS14-AS is our double miter saw designed for aluminum. The (2) 14″ blades cycle are individually powered and cycle together for smooth cutting. Auto misting lubrication system with pneumatic stroke cycle is standard with optional air/hydraulic stroke. Features heavy duty steal construction , safety enclosure and infeed and outfeed with stop positioning system for repeatable cut accuracy and added safety.
MAIN MOTOR HP: (2) 2 HP Motors
VOLTAGE, FREQUENCY: 230/460 Volt 60 HZ
PHASE: 3 Phase
AMP REQUIREMENT: 12/6 Amps
TOTAL MACHINE HP: 4 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
PASS-LINE: 32-1/4''
CUTTING ENVELOPE: 4'' x 4''
MIN. WORKING LENGTH: 6-1/4''
MIN. WORKING WIDTH: 3/16''
MAX. WORKING WIDTH: 4''
MAX. WORKING THICKNESS: 4''
ABLE TO CUT ANGLE: 45 Degree
ARBOR RPM: 3600 RPM
BLADE SIZE: 14'' Carbide Tipped
NO. OF TEETH ON BLADE: 120 Tooth
TOOTH SPACING: 3/8''
BLADE KERF: .120''
FLR INCLUDED: Filter Lubricator Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8' Line @ 90 PSI
WASTE DISCHARGE: Side Chute
SAFETY FEATURE: Full Enclosure
OPERATION STYLE: Dual Palm Button
OILER: Oil Mist on Sawblade
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: Cast
INFEED TABLE LENGTH: 60''
OUTFEED TABLE LENGTH: 60''
DECIBEL RATING: 73 dB
NET WEIGHT: 713 Lbs.
GROSS WEIGHT: 876 Lbs.
MACHINE DIMENSIONS: 159'' x 31'' x 51''
PACKAGING DIMENSIONS: 66'' x 39'' x 60''
