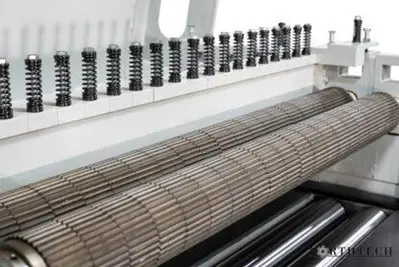

The NT 1000-40 is our 40HP Single Surface Planer with 40″ working width. This planer has a heavy duty cast iron base, oversized column bed supports and spring loaded chip breakers. The 1000 comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed rollers with smooth non marking outfeed rollers coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. Unlike many competitive models of single surface planers, all Northtech feed rollers are synchronized to turn at the same speed.
TOP HEAD HP: 40 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 48/96 Amps
FEED HP: 2 HP
FEED SYSTEM: (4) Top Powered Rollers (4) Bottom Powered Rollers
FEED SPEED RANGE: 10-40 FPM
VARIABLE FEED SPEED: Manual Clutch Adjustment
ELEVATION HP: 2 HP
ELEVATION STYLE: PHE 727M Digital Readout
ELEVATION SYSTEM: (2) Post Jack Screws
TOTAL MACHINE HP: 44 Hp.
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation
PASS-LINE: Down Position 38-1/2'' Up Position 45-3/8''
MIN. WORKING LENGTH: 14''
MAX. WORKING WIDTH: 40''
MIN. WORKING THICKNESS: .37''
MAX. WORKING THICKNESS: 7.32''
CUTTER HEAD RPM: 3622 RPM
HEAD TYPE: Spiral Helical Cutter Head
CUTTER HEAD DIMENSIONS: 5-1/2'' x 40''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 8 Rows of 40 inserts
NO. OF INSERTS: 320 Inserts
INSERT SIZE: 15 x 15 x 2.5 MM
DUST PORT SIZE OUTLET: (2) 6''
DIGITAL DISPLAY: Elevation Controller
POWERED ROLLERS: (4) Top (4) Bottom
HOLD DOWN STYLE: (20) 2'' Chip Breakers 1 Pressure Plate
REAR E STOP: Push Button
GUARDING: Full Enclosure
FRAME CONSTRUCTION: Cast Construction
DECIBEL RATING: 68 dB
NET WEIGHT: 5470 Lbs.
GROSS WEIGHT: 5798 Lbs.
MACHINE DIMENSIONS: 65'' x 63'' x 61-1/2''
PACKAGING DIMENSIONS: 68'' x 66'' x 67''
