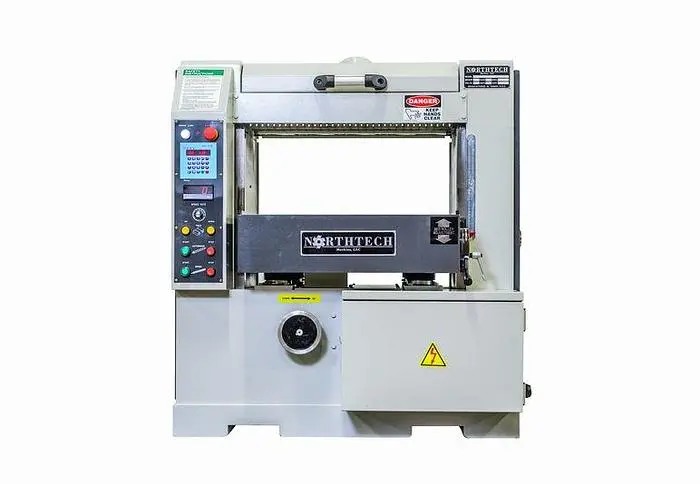

Northtech, NT 660S-20HCVS-2034 Single Surface Planer

NT 660S-20HCVS-2034 Single Surface Planer
• Helical 4" cutterhead provides high chip removal rate, superior surface finish & low noise level (under 85 dba).
• Powerful 20HP cutterhead motor; 2HP feed motor makes this planer ideal for heavy  duty planing and meets high production requirements. Arranged with Y-Delta soft start controls (Square D).
•Main motor is Nema rated and standard with 1 year warranty and service throughout  North America.
• Digital positioning controller for convenient thickness setting (with memory control to 99 thickness settings).
• Variable feed speed is driven by a VFD and TECO inverter duty DC motor (0-90' min) with LED readout of  feeding speed.
• Powered table elevation for fast and convenient thickness setting. Opening has been increased to 12" on  NT-660S series planers vs. 8" on the standard NT-660 planers.

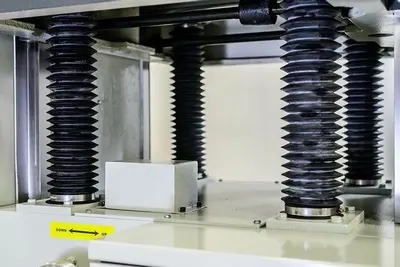

• Extra heavy, rib reinforced cast iron table is surface precision ground. 660S-20HCVS has (4) precision 35mm  jack screws to support the planer's rugged construction.
• Adjustable bed rollers ensure fast and proper positioning with regards to rough lumber to finished   glue panels.
• UV rubber outfeed roller provides optimum finish with reduced vibration.
• Corrugated sectional infeed roller has independent yield for running strip stock of varying thickness without  the danger of kick back.
• Anti-kickback fingers equipped at the infeed end provide added safety for the operator.
• Raising and lowering limit controls for powered table elevation

TOP HEAD HP: 20 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 26/52 Amps
FEED HP: 2 HP
FEED SYSTEM: (2) Segmented Powered Rollers (1) Powered Poly Roller
FEED SPEED RANGE: 5-75 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP

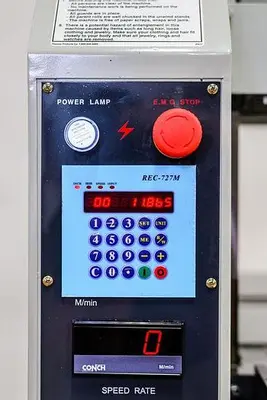

ELEVATION STYLE: REC727M Digital Controller
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 23 HP.
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation
MIN. WORKING LENGTH: 10''
MIN. WORKING WIDTH: 26''
MIN. WORKING THICKNESS: 3/16''
MAX. WORKING THICKNESS: 12''
CUTTER HEAD RPM: 5464 RPM
HEAD TYPE: Spiral Helical Cutter Head
CUTTER HEAD DIMENSIONS: 4'' x 26''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 6 Rows
NO. OF INSERTS: 156 Inserts
INSERT SIZE: 15 x 15 x 2.5 MM
DUST PORT SIZE OUTLET: (1) 6'' Port
DIGITAL DISPLAY: Elevation Controller / Feed Speed
POWERED ROLLERS: (2) Segmented Rollers / (1) Poly Roller
IDLE ROLLERS: (1) Infeed Roller (1) Outfeed Roller
HOLD DOWN STYLE: (13) Chip Breakers (1) Pressure Plate
REAR E STOP: Push Button
GUARDING: Full Enclosure
FRAME CONSTRUCTION: Cast/Steel Construction
DECIBEL RATING: 70 dB
NET WEIGHT: 2420 Lbs.
GROSS WEIGHT: 2770 Lbs.
MACHINE DIMENSIONS: 44'' x 39'' x 55''
PACKAGING DIMENSIONS: 52'' x 51'' x 55''
