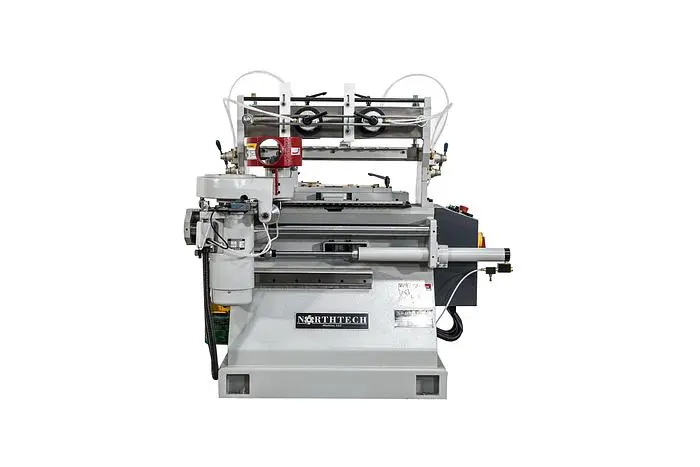

The NT-DTM480 is our single spindle semi-automatic dovetailer. This single spindle indexes across a precision fixed pitch template the entire working width automatically. Unlike other competitive models, the NT-DTM480 has extra 2″ of working width and a return home button. This means you can set the rear limit switch for an automatic return for high volume sizes while also simply pressing the return home button once part is complete. This makes this the most versatile semi-automatics dovetailer on the market today. Available in single phase and three phase this is one of our smallest footprint models.
MACHINE HP: 4 HP
MAIN MOTOR HP: 2 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 13.6/6.8 Amps
CONFIGURATION: Single Spindle
SPINDLE DIAMETER: 12 MM
SPINDLE RPM: 21,500 RPM
FEED HP: 2 HP
FEED SYSTEM: Indexing Mold Board
DRIVE SYSTEM: Motor / Gearbox
FEED SPEED RANGE: 25.5 - 34 - 45.75 Second Cycle Times
VARIABLE FEED SPEED: 3 Ditch Pulley
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PASS-LINE: 38-1/4''
MAX. WORKING WIDTH: 19-1/8'' With Dovetails 24'' Max
MIN. WORKING THICKNESS: 10 MM
MAX. WORKING THICKNESS: 20MM
MAX DEPTH MORTISE: 20 MM
MAX WIDTH MORTISE: 18 MM
CUTTER HEAD RPM: 21500 Rpm
TOOLING: 2 Wing 2 MM Shank
VERTICAL TRAVEL: 30 MM on Cutter
DUST COLLECTION REQUIREMENT: 245 CFM @ Extraction Point
DUST PORT SIZE OUTLET: (1) 3''

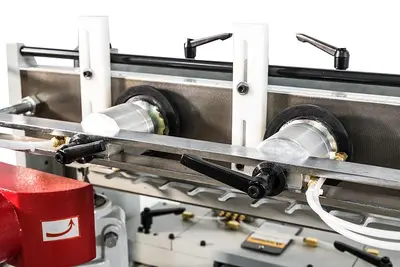

HOLD DOWN STYLE: (4) Pneumatic Hold Downs
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI

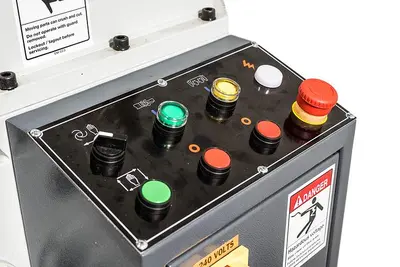

EMERGENCY STOP: Push Button
OPERATION STYLE: Auto/Manual
OILER: Automatic
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 9'' x 3/4''
FRAME CONSTRUCTION: 1/4'' Steel
TABLE CONSTRUCTION MATERIAL: Cast
NET WEIGHT: 1100 Lbs.
GROSS WEIGHT: 1270 Lbs.
MACHINE DIMENSIONS: 52'' x 31'' x 48''
PACKAGING DIMENSIONS: 57'' x 36'' x 58''
