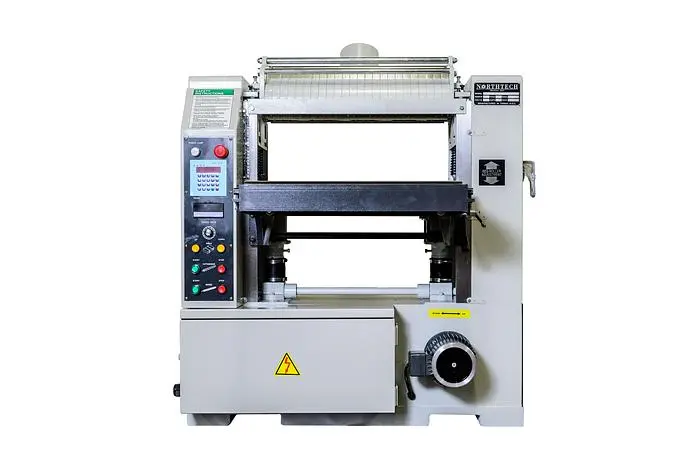

Northtech NT24-15HCVS-XL 15 HP Ultimate Single Surface Planer (w/ Helical Cutter Head)

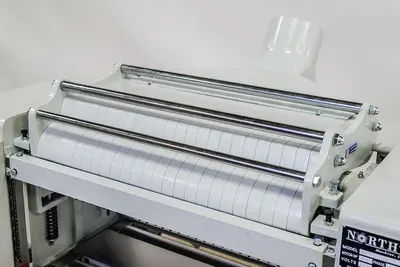

The NT 24-15HCVS is our most popular model being is the best value available which, is why we call it the Ultimate. The 24″ working width provides excellent the flexibility and versatility that makes the Ultimate a staple in many wood shops and large factories across the US. The Ultimate comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed roller with smooth non marking outfeed roller coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. The 15HP motor powers the cutter head through any specie of material while providing a pristine finish. Unlike many competitive models, all Northtech feed rollers are synchronized to turn at the same speed. NT 24-15HCVSXL-1532 Single Surface Planer
FEED SYSTEM
•  Cutterhead motor:  15HP, 3PH 230V
•  Power table motor: 1HP
•  Feed drive motor:  1HP
PRODUCT DIMENSIONS
•  Stocking thickness range:  1.8" - 7.874"
•  Max depth of cut:  5mm (3/16")
•  Max. width of stock:  610mm (24")
•  Cutterhead diameter:  80mm (3-1/4")
FEATURES

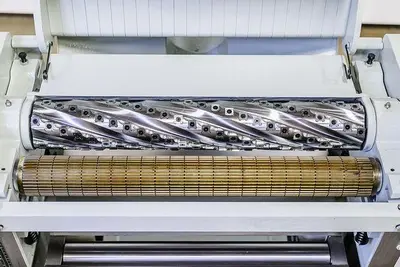

•  24" Helical Head with (6) rows of 15 x 15 x 2.5mm 4-way carbide inserts.
•  Spiral cutterhead provides high chip removal rate, superior surface finish at low noise levels.
•  Range of feed speed:  0-75 ft./min. variable inverter.

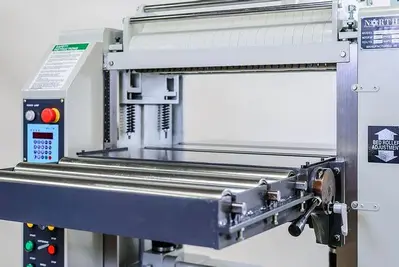

•  Quick adjust bed rollers

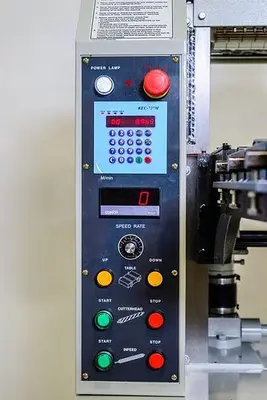

•  Powered table elevation for fast and convenient thickness setting via the digital control.
•  Extra heavy rib reinforced cast iron table with precision ground surface.
•  Corrugated sectional infeed roller has independent sections for running strip stock of varying thickness.
•  Table area:  25" x 27-1/4" (635 x 692mm)
•  Net weight 1,525 lbs. •  Gross weight 1,630 lbs.
•  Packing dimensions:  (L) 49" x (W) 36" x (H) 54"
•  (1) Tool box
•  Warranty is one year parts
•  All machines are tested stateside prior to shipment providing trouble free start up.

Top Head Hp.: 15 Hp.
Voltage/ Freq.: 230/460 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 19/38.6 Amps
Feed Hp.: 1 Hp.
Feed System: Segmented Roller Power Roller
Drive System: Belt
Feed Speed: 5 – 70 FPM
Variable Speed: Inverter Controlled
Elevation Hp.: 1 Hp.
Elevation Style: REC 727M Elevation Control
Elevation Sys.: (2) Post Jack Screw
Total Hp.: 17 Hp.
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 110 Volt
Programmable: REC 727M Elevation Control
Min. Length: 10”
Max. Width: 24”
Min. Thickness: 3/16″
Max. Thickness: 7-3/4”
Cutter Head RPM: 5250 Rpm
Tooling: 15 x 15 x 2.5 mm
Head Type: Dynamically Balanced Helical Head
Cutter Head Dim: 3-3/4” x 24”
Cut Head Matl.: Alloy Steel
Rows of Cutters: 6 Rows
No. of Inserts: 144 Inserts
Insert Size: 15 x 15 x 2.5 mm
Dust Port Out: 6” Top
Digital Display: Elevation and Feed Speed
Powered Rollers: 2 Top Powered Rollers
Idle Rollers: (2) Idle Bed Rollers
Pressure Shoes: 24” Spring Loaded Pressure
Frame Const.: 1/4” Steel/Cast Iron Construc
Infeed Table: 15-1/2” 3 Roll Infeed Table
Decible Rating: 77 dB
Net Weight: 1525 Lbs.
Gross Weight: 1630 Lbs.
Machine Dimensions: 43” x 45” x 55”
Packaging Dimensions: 46” x 49” x 54”
