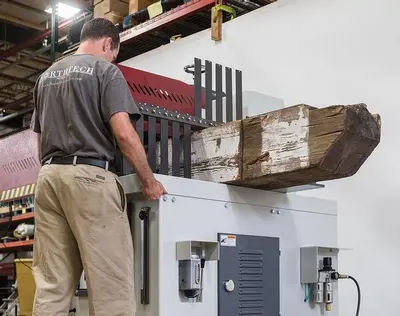

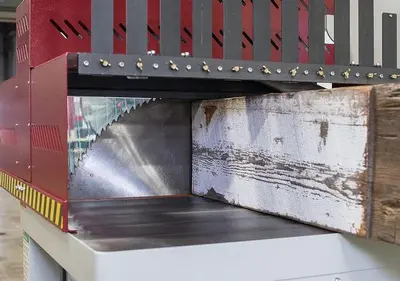

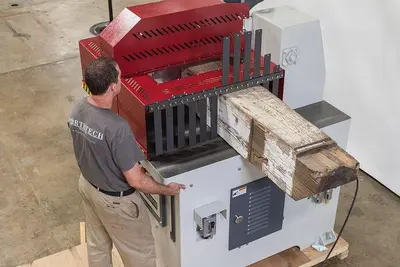

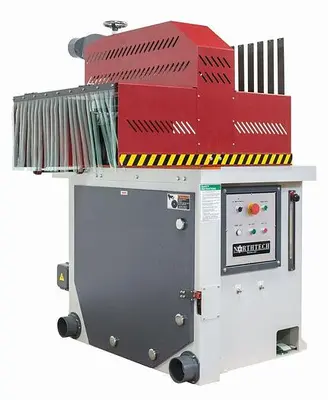

The NT CS36L Up Cut Saw is the largest cross cut saw we offer. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 36″ diameter blade the CS36 has an unheard of 2″x33″ cut capacity making it the best saw for large parts. This machine comes standard with stroke speed control, emergency stop, safety interlock on blade door, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS36 has available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access. Options:
• 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops . . .
• 16' infeed / 16' outfeed roller system with (2) gravity flip stops . . .
• 36” x 120T carbide tipped blade (standard with saw) . . .
• 36” x 160T carbide tipped blade . . .
• (1) Gravity flip stop . . .
• 460V electrics . . .
• Double palm button actuation in lieu of foot pedal . . .
MAIN MOTOR HP: 25 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 30/60 Amp
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
ASSISTED START: Wye Delta
CUTTING ENVELOPE: 1'' x 27-3/4'', 2'' x 27'', 4'' x 26'', 8'' x 23'', 12'' x 12''
MAX. WORKING THICKNESS: 12''
ARBOR RPM: 1500 RPM
BLADE SIZE: 36'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 120 Tooth
TOOTH SPACING: 1''
BLADE KERF: .305''
DUST PORT SIZE OUTLET: (4) 5'' Ports
ARBOR DIAMETER: 2''
CYCLES/MINUTE: 14 Cycles Per Minute
HOLD DOWN STYLE: Top Clamp
SAFETY FEATURE: Sawblade Door Safety Interlock
GUARDING: Clear View Guard
OPERATION STYLE: Foot Pedal
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 6'' x 39-1/2''
FRAME CONSTRUCTION: 1/4'' Steel
WORKTABLE DIMENSIONS: 34-3/4'' x 57-3/4''
TABLE CONSTRUCTION MATERIAL: Cast Constructions
DECIBEL RATING: 79 Db
NET WEIGHT: 2605 Lbs.
GROSS WEIGHT: 2900 Lbs.
MACHINE DIMENSIONS: 58'' x 66'' x 78''
PACKAGING DIMENSIONS: 62'' x 45'' x 79''
