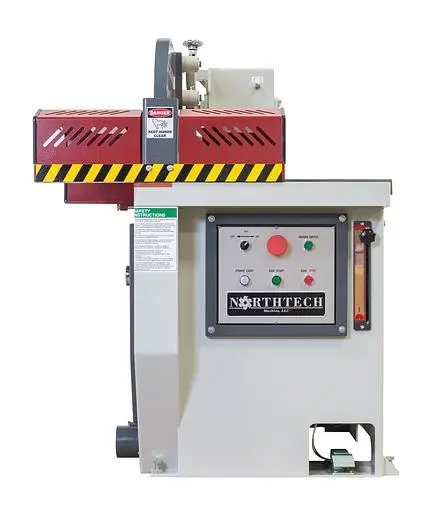

The NT CS24L Up Cut Saw is the first saw to step into the larger body frame. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 24″ diameter blade the CS24 has a modest 2″x21″ cut capacity making it more user friendly for mid sized parts. This machine comes standard with stroke speed control, emergency stop, safety interlock on blade door, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS24 has available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access. FEATURES

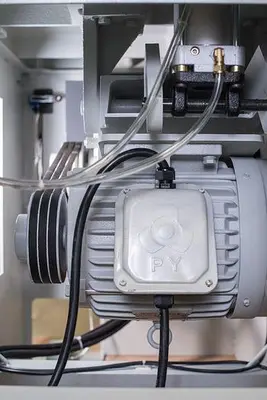

• 15HP motor, 3PH 230V with 24V magnetic controls
• 24” Carbide tipped blade included
• Cycle operation: Pneumatic
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock on blade access door
• Table size: 28-3/4” x 45”
• 2100 RPM
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
MAIN MOTOR HP: 15 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 16/32 Amps
CONTROL VOLTAGE: 24 Volt Control Voltage
ASSISTED START: Wye Delta
PASS-LINE: 34''
CUTTING ENVELOPE: 1'' x 21'', 2'' x 21-1/2'', 3'' x 20'', 4'' x 18-1/2'', 5'' x 16-3/4'', 6'' x 14-1/4'', 7'' x 11-1/4'', 6'' x 8''
MAX. WORKING WIDTH: 21-1/2''
MAX. WORKING THICKNESS: 8-3/8''
ARBOR RPM: 2100 RPM
BLADE SIZE: 24'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 100 Tooth
TOOTH SPACING: 5/8''
BLADE KERF: .156''
DUST PORT SIZE OUTLET: (2) 4'' Ports
ARBOR DIAMETER: 1''
CYCLES/MINUTE: 26 Cycles Per Minute
HOLD DOWN STYLE: T Clamp
FLR INCLUDED: Filter, Lubricator, Regulator
SAFETY FEATURE: Sawblade Door Safety Interlock
GUARDING: Clear View Guard
OPERATION STYLE: Foot Pedal (Optional Dual Palm Buttons
FENCE DIMENSIONS: 2'' x 25-1/8''
FRAME CONSTRUCTION: 1/4'' Steel
DECIBEL RATING: 68 dB
NET WEIGHT: 1285 Lbs.
GROSS WEIGHT: 1455 Lbs.
MACHINE DIMENSIONS: 31-3/4'' x 45'' x 56''
PACKAGING DIMENSIONS: 36'' x 51'' x 61''
