The NT UCS18L Up Cut Saw is the most popular model in the Northtech Up Cut Saw family. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 18″ diameter blade the UCS18 has a capable 2″x12″ cut capacity in a small footprint making it ideal for smaller to midsize parts. The UCS series boasts some noteworthy features over competitive models with an improved dust collection system preventing the need for daily blow out under the machine and it also comes with a full length fence and backer to prevent blowout on the back side of the part. This machine also comes standard with stroke speed control, emergency stop, safety switch, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The UCS18 has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access. PRODUCT DIMENSION
• Max cutting capacity: 1'' x 13-1/2'', 2" x 12", 3" x 11", 4" x 10"
FEATURES
• 10HP motor, 3PH 230V with 24V magnetic controls
• 18” 120T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Table size: 26” x 27.25”
• Quick access on front of the machine to adjust blade stroke.
• Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction
• Net weight: 730 lbs.
• Gross weight: 890 lbs.
• Packing dimensions: (L) 33" x (W) 33" x (H) 46"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
OPTIONS
• 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
• 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
• Custom infeed/outfeed rollers up to 40’
• 18" x 80T carbide tipped blade
• 18” x 100T carbide tipped blade
• 18” x 120T carbide tipped blade
• (1) Gravity flip stop
• 460V 3Ø electrics
• Safety interlock for blade access
• Double palm button actuation in place of foot pedal
• Rigid stop
MAIN MOTOR HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 12/24 Amps
TOTAL MACHINE HP: 10 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt 60Hz

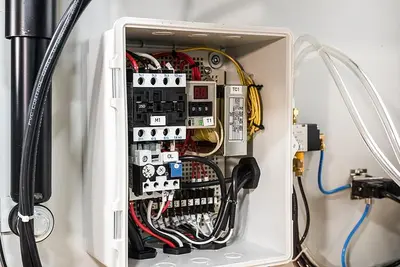

CONTROL VOLTAGE: 24 Volt
PASS-LINE: 34-1/4''
CUTTING ENVELOPE: 1/2'' x 12-3/4'', 1'' x 12-1/4'', 2'' x 11-3/4'', 4'' x 8-3/4'', 5'' x 6-1/4''
ARBOR RPM: 2560 RPM
BLADE SIZE: 18'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 120 Tooth
TOOTH SPACING: 15/32''
BLADE KERF: .435''

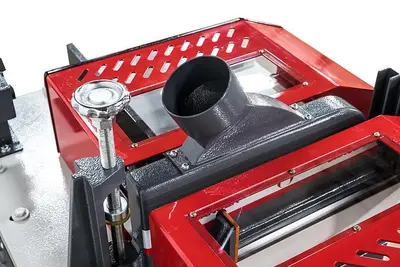

DUST COLLECTION REQUIREMENT: 4'' Port @ 450CFM Optional 2nd Top Port
ARBOR DIAMETER: 1''
CYCLES/MINUTE: 45 Cuts Per Minute Adjustable
HOLD DOWN STYLE: T Clamp
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
SAFETY FEATURE: Saw Blade Door Safety Interlock (Optional)
GUARDING: Full Guard with Clear View

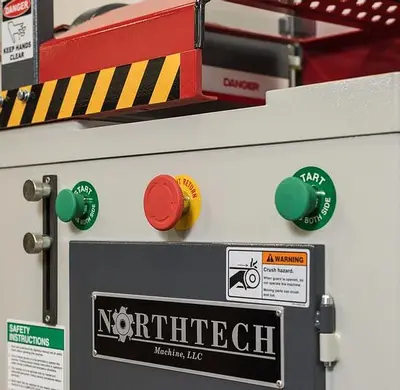

OPERATION STYLE: Foot Pedal Optional Dual Palm Button

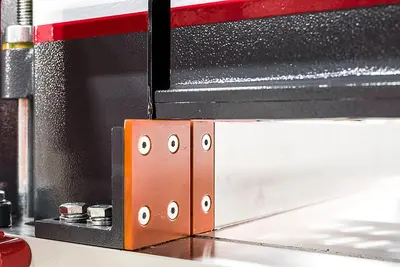

FENCE TYPE: Fixed
FENCE DIMENSIONS: 3'' x 26''
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: 26'' x 27-1/4''
TABLE CONSTRUCTION MATERIAL: Cast Iron
DECIBEL RATING: 78 dB
NET WEIGHT: 730 Lbs.
GROSS WEIGHT: 890 Lbs.
MACHINE DIMENSIONS: 37'' x 30'' x 47''
PACKAGING DIMENSIONS: 40'' x 48'' x 55''
