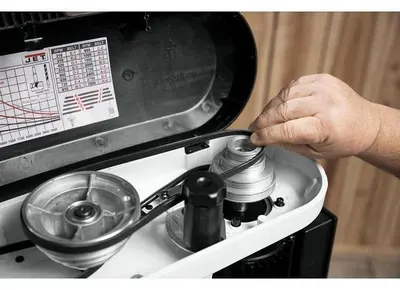

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified. Features Integrated depth stop makes repetitive drilling quick and easy Large cast iron base provides stability One-handed belt tensioning allows for rapid speed changes Power switch features a safety key and large, paddle-style off button Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system Replaceable MDF table insert Table edge lip designed to make clamping easy Xacta-X laser system easily identifies the drill center
Assembled Machine Dimensions (L x W x H) (In.): 28-1/2 x 19 x 65
Chuck Distance to Base (In.): 42-7/8
Chuck Distance to Table (In.): 25-7/8
Chuck Size (In.): 5/8
Column Diameter (In.): 3-5/32
Motor Power (HP): 3/4
Spindle Distance to Base (In.): 46-1/2
Spindle Distance to Table (Max.) (In.): 30
Table Size (L x W) (In.): 14 x 19
Weight (Lbs.): 187
Spindle Travel (In.): 5
Style (Type): Floor standing Model
Swing (In.): 16-7/8
Number of Spindle Speeds: 16
Recommended Circuit Size (Amps.): 15
