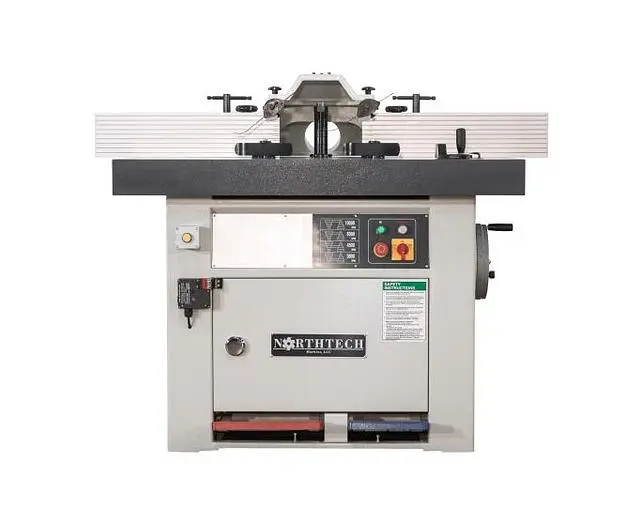

The NT 735 shaper is one of the best built shapers available. Matching the powerful 10hp interchangeable 4 speed spindle with a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes, provides excellent customer capability . The oversized precision ground table on solid steel cabinet provides stable vibration free milling. Options include: Tilting Spindle / Sliding Table Tilting spindle assembly (-5 / + 45 Degrees) Sliding table with 8 rollers bearings 15 HP Motor Voltage change to 460 volt M-10 digital LED readout of spindle height (installed) DP-727 digital electronic set works with power raise and lower plus has 99 position memory/recall *Additional options available on the MK5 package: Optional 7” under nut spindle with spacers and nut Optional 3/4”, 1”, 1-1/4”, 40mm spindle with spacer nut MACHINE HP: 10 HP VOLTAGE, FREQUENCY: 230/460 Volt 60Hz PHASE: 3 Phase AMP REQUIREMENT: 26 / 13 Amps SPINDLE LENGTH: 6'' SPINDLE DIAMETER: 1-1/4'' SPINDLE RPM: 3000, 4500, 6000, 10000 RPM UNDER THE NUT CAPACITY: 5'' TOTAL MACHINE HP: 10 HP APPROVED ELECTRICAL PARTS: CE Approved Parts DUAL VOLTAGE MOTORS: 230/460 Volt CONTROL VOLTAGE: 110 Volt PASS-LINE: 35'' VERTICAL TRAVEL: 5'' on Spindle DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points DUST PORT SIZE OUTLET: 5'' EMERGENCY STOP: (1) Front FENCE DIMENSIONS: (2) 23-3/4'' x 5-3/4'' MICRO FENCE: Micro Adjustable BRAKE SYSTEM: Foot Pedal FRAME CONSTRUCTION: Fabricated Steel WORKTABLE DIMENSIONS: 36'' x 47-3/4'' TABLE CONSTRUCTION MATERIAL: Machined Cast DECIBEL RATING: 65 dB NET WEIGHT: 1254 Lbs. GROSS WEIGHT: 1404 Lbs. MACHINE DIMENSIONS: 48'' x 36'' x 46'' PACKAGING DIMENSIONS: 42'' x 53'' x 51''
MACHINE HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 26 / 13 Amps
SPINDLE LENGTH: 6''
SPINDLE DIAMETER: 1-1/4''

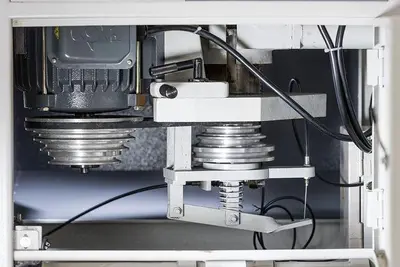

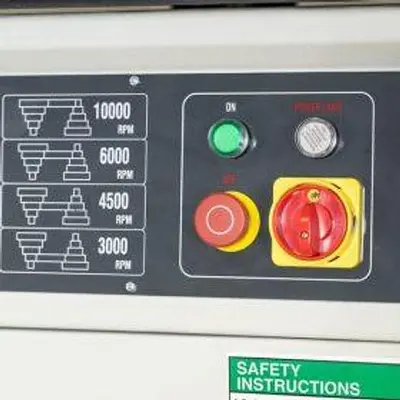

SPINDLE RPM: 3000, 4500, 6000, 10000 RPM
UNDER THE NUT CAPACITY: 5''
TOTAL MACHINE HP: 10 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 35''
VERTICAL TRAVEL: 5'' on Spindle
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: 5''
EMERGENCY STOP: (1) Front
FENCE DIMENSIONS: (2) 23-3/4'' x 5-3/4''
MICRO FENCE: Micro Adjustable
BRAKE SYSTEM: Foot Pedal
FRAME CONSTRUCTION: Fabricated Steel
WORKTABLE DIMENSIONS: 36'' x 47-3/4''
TABLE CONSTRUCTION MATERIAL: Machined Cast
DECIBEL RATING: 65 dB
NET WEIGHT: 1254 Lbs.
GROSS WEIGHT: 1404 Lbs.
MACHINE DIMENSIONS: 48'' x 36'' x 46''
PACKAGING DIMENSIONS: 42'' x 53'' x 51''
