NEW LAGUNA 14|BX

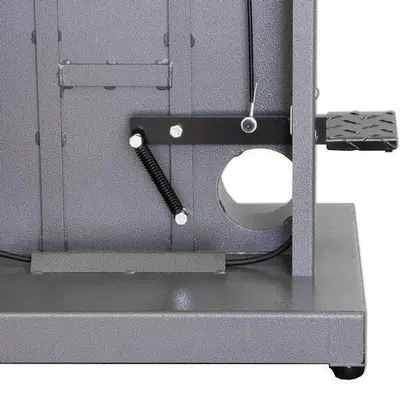

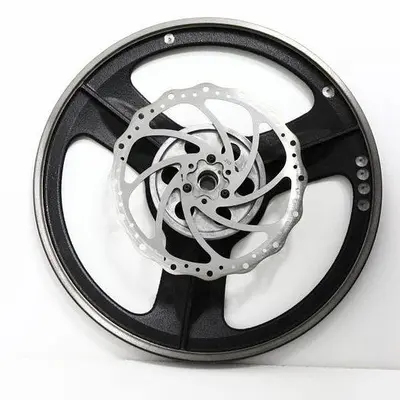

Main differences from 14|12: – Weight increased – Solid one-piece Frame – Frame is heavier Gauge – Magnetic On/Off Switch – Disc-Brake w/ Micro-Switch – Dual light mounting positions Shown with optional Blade * Blade Not Included Features 12″ Resaw Height: 70-1/4″ 21-1/2″ X 16″ Table Table Height: 38″ 7° Table Tilt Left 2 X 4″ Dust Ports 110 Volt 1.75HP, 14 Amp, TEFC 110 Volt Outlet for Light 6′ Cord with Nema Plug: 5-15P Weight (Net/Ship): 260/320 lbs 220 Volt 1 Phase, 2.5HP, 9.8 Amp, TEFC 220 Volt Outlet for Light 6′ Cord with Nema Plug: 6-15P Weight (Net/Ship): 270/330 lbs

Height: 70-¼″
Table Size: 21-½″ x 16″
Table Height: 38″

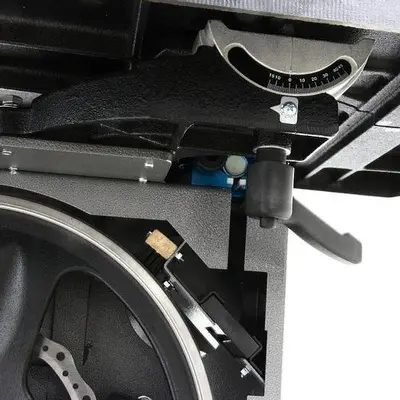

Table Tilt Left: 7°
Table Tilt Right: 45°
Number of dust ports: 4″ x 2
Blade Length: 115''
Cast Iron Wheels: Yes
Magnetic Starter: Yes
Dual Light Mount: Yes
Max. Blade Width: ¾″
Pyramid-Shaped Spine: Yes
Min. Blade Width: ⅛″
Footprint: 17-½″ x 22-½″
Quick Release Tension: Yes
Magnetic Blade Guard: Yes

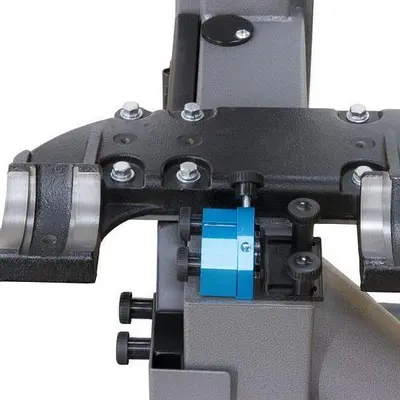

Laguna Ceramic Guides: Yes
Hi/Low Aluminum Fence: Yes
Worm Gear Rack & Pinion: Yes
Massive Cast Trunion: 8″ x 13″
Shipping Weight: 350lbs
Shipping Dimensions (L x W x H): 73″ x 27″ x 29″
