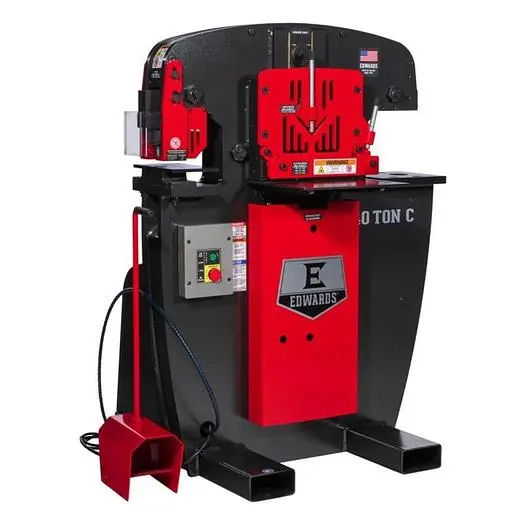

The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication, and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear, and a universal open tooling station designed to accept optional Tooling Accessories. There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs. 40 Tons on 115 Volts Four Available Workstations Universal Open Tooling Station Operates on 115V Power ANSI B11.5-198802) Compliant Guarding ETL Certified Controls Integrated Lock-out/Tag-out PUNCH Rating (tons) 40 Max Capacity (in.) 1 diam. in 1/2 mild steel Work Height (in.) 34-1/2 Throat Depth (in.) 7 Stroke (in.) 1-5/8 FLAT BAR SHEAR Max. Capacity (in.) 1/4 x 8 3/8 x 6 1/2 x 4 Work Height (in.) 34-3/4 ANGLE SHEAR Max. Capacity (in.) 3 x 3 x 1/4 Work Height (in.) 40 OPEN STATION Throat Depth (in.) 10-1/2 Work Height (in.) 34-1/2 GENERAL SPECIFICATIONS Standard Motor 2 HP Product Dimensions (.in) 36-1/8 x 40 x 53 Weight (lbs.) 1,720
