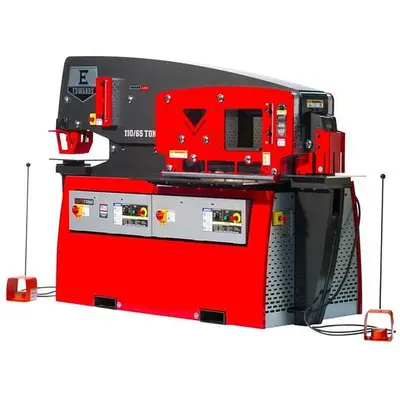

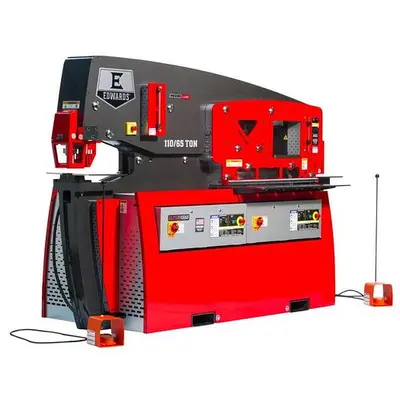

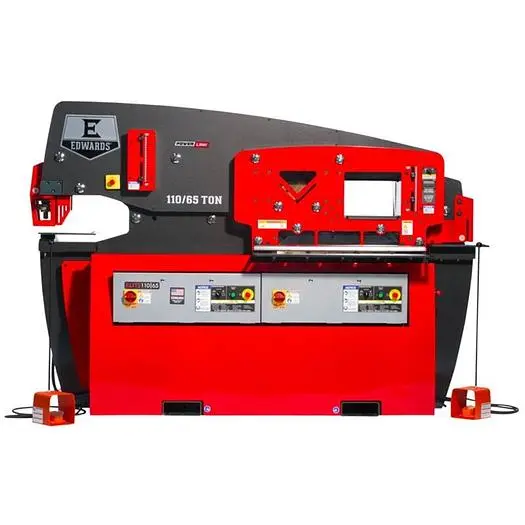

NEW EDWARDS 110/65 TON ELITE

Five Workstations Two Independent Power Plants Super-size Punch Throat Depth of 17-3/4" Universal Open Tooling Cavity ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls ELITE Integrated Features: Hydraulic Hold-Down E-Stop / Lockout-Tagout Electric Stroke Control Hydraulic Accessory Pack Central Lubrication System Swing-Away Stripper Assembly Roller Encoder Measuring System Quick Change Punch Assembly Premium Gauging Tables LED Lighting Designed for simultaneous use by two people, the Edwards ELITE 110|65 Ironworker is the most powerful of the new ELITE line. It features a standard Punch Assembly, 24" wide Flat Bar Shear, Angle Shear, a dedicated Coper Notcher and a universal open tooling station for optional Tooling Accessories. The integrated PowerLink System enables your ELITE 110|65 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools. PUNCH Rating 110 Tons Max. Capacity 1-3/8" Dia. in 1" A36 (65,000 PSI Tensile) Stroke 3" Throat Depth 17-3/4" Open Height 9-3/4" Shut Height 6-9/16" Work Height 37-1/2" FLAT BAR SHEAR Rating 65 Tons Max. Capacity 3/8" x 24" 1/2" x 14" 1" x 4" Max. Round 1" Max. Square 1" Work Height 33-1/2" ANGLE SHEAR Max. Capacity 5" x 5" x 3/8" Work Height 44" COPER NOTCHER Max. Capacity 2-1/2" x 6" x 3/8" Work Height 35-5/8" OPEN CAVITY Height 9" Width 11-3/4" Work Height 40-7/8" GENERAL SPECIFICATIONS Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A 7.5 HP 3~ 575 V 1770 RPM 8 A 7.5 HP 1~ 230 V 1765 RPM 36 A Hydraulic Pump 10-1/2 GPM - 2 Stage Valve Pressure 3000 PSI Reservoir 17 GallonsCylinder (Punch Side) 7-1/2" Bore / 3" RamCylinder (Shear Side) 6" Bore / 3-1/2" Ram DIMENSIONS Height 65-1/8" Width 91-9/16" Depth 44-7/8" Shipping Weight 8580 lb
