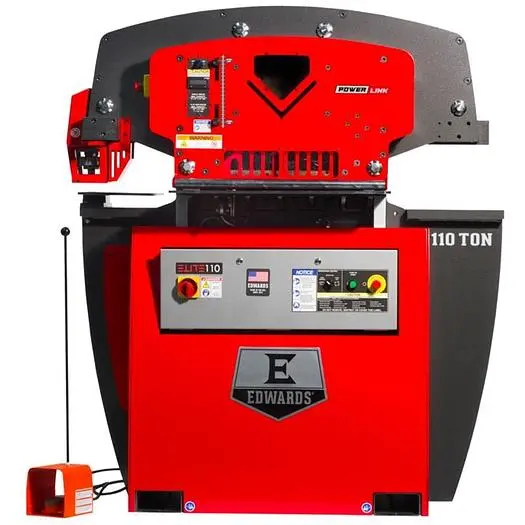

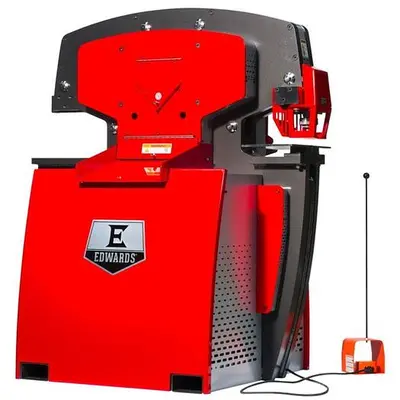

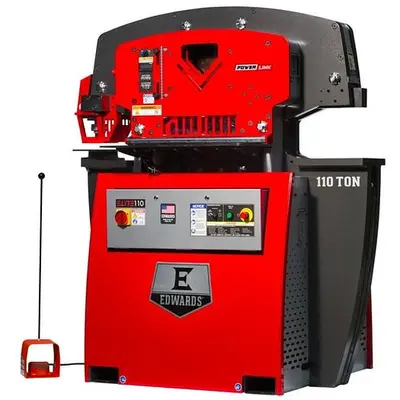

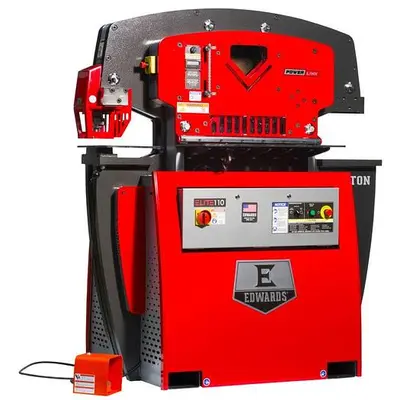

Universal Open Tooling Station ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls ELITE Integrated Features: Hydraulic Hold-Down E-Stop / Lockout-Tagout Electric Stroke Control Hydraulic Accessory Pack Central Lubrication System Swing-Away Stripper Assembly Roller Encoder Measuring System Quick Change Punch Assembly Premium Gauging Tables LED Lighting The Edwards ELITE 110 Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers. Standard features of the ELITE 110 include a Punch Assembly, Flat Bar Shear, Angle Shear and a universal open tooling station for optional Tooling Accessories. Integrated PowerLink System enable your ELITE 110 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools. PUNCH Rating 110 Tons Max. Capacity 1-3/8" Dia. in 1" A36 (65,000 PSI Tensile) Stroke 1-13/16" Throat Depth 11-3/4" Open Height 8-5/8" Shut Height 6-13/16" Work Height 41" FLAT BAR SHEAR Max. Capacity 3/4" x 14" 1" x 12" Max. Round 1-1/4" Max. Square 1-1/4" Work Height 41-1/2" ANGLE SHEAR Max. Capacity 6" x 6" x 1/2" Work Height 50-7/8" OPTIONAL COPER NOTCHER Max. Capacity 2-1/2" x 6" x 1/2" Work Height 44-3/16" OPEN STATION Throat Depth 15-1/2" Open Height 8-5/8" Shut Height 6-13/16" Stroke 1-13/16" Work Height 39-3/16" GENERAL SPECIFICATIONS Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A 7.5 HP 3~ 575 V 1770 RPM 8 A 7.5 HP 1~ 230 V 1765 RPM 36 A Hydraulic Pump 10-1/2 GPM - 2 Stage Valve Pressure 3000 PSI Reservoir 17 Gallons Cylinder 3-1/2" Ram DIMENSIONS Height 66-1/16" Width 57-1/4" Depth 42-3/8" Shipping Weight 5380 lb
