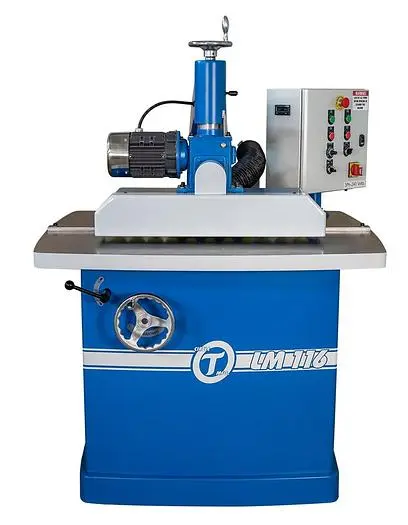

NEW CIRCLE T LM116

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more! A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!! No more downtime setting up and changing out your shaper!!! No more running pieces on their side!!! Upgrade to our EASY LOCK MITER LM116

Maximum Material Thickness: 1″
* Minimum Material Thickness: 1/2″
* Minimum Material Width: 1-1/4″
Minimum Material Width (2-Sided): 2″
* Maximum Material Thickness: 1″
* Minimum Material Length: 12″
Capable of Machining Angles from: 90 – 30 Degrees (Finish Angle)
* Spindle Motor: 5 HP
* Feed Motor: 0.5 HP
* Spindle Diameter: 1-1/4″
* Spindle Speed: 8,200 RPM

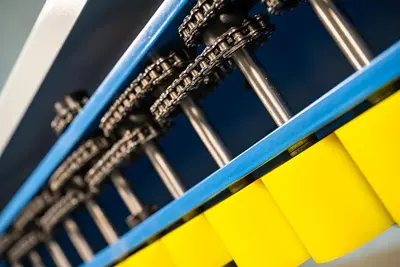

Variable Speed: 11-Roll Positive Grip Feeder

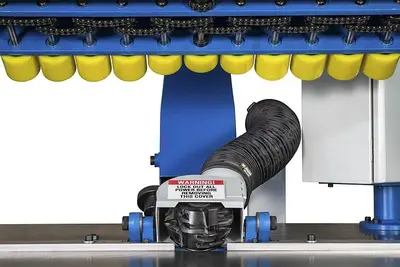

* Dust Collection Requirements: 670 CFM, 4″ Outlet
* Pneumatic Requirements: 100 PSI .5 CFM
Power Requirements: 25 AMP Disconnect at 480V 3phase
* Table Size: 40″ x 47″
Footprint: 42″L x 54″W x 60″H
NET WEIGHT: 1250lbs
