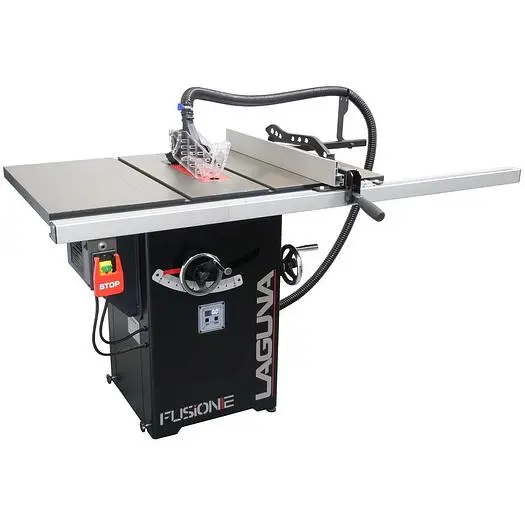

F2 Fusion Tablesaw
The new Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years. 2 New Features Now Standard On F2 & F3 Fusions DRO For The Tilt Angle Of BladeDouble Window With Hairline For Hi/Low Fence
Dust Port Size: 4 in.
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 37''
Table: Precision-Ground Cast Iron
Wings: Precision Cast Iron
Cabinet: Pre-Formed Steel
Trunnions: Cast Alloy
Body Assembly: Pre-Formed Steel
Fence Assembly: Aluminum Extruded Body
Rails: Steel
Miter Gauge Construction: Aluminum Body With Steel Bar
Guard: Steel And Clear Plastic
Body/Cabinet Paint Type/Finish: Powder Coated
Arbor Bearings: Sealed & Permanently Lubricated
Weight (Net): 276 lbs
Overall Width (Side-To-Side): 66-13/16″
Overall Depth (Front-To-Back): 39-⅜″
Overall Height: 42-⅞″
Footprint Width: 19-¼″
Footprint Length: 42-½″
Shipping Weight: 435 lbs
Shipping Dimensions (W x L x H): 30″ x 48″ x 43
