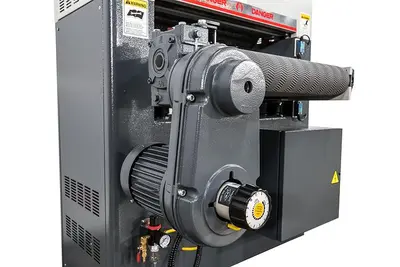

NEW NORTHTECH NT-600C

The NT-600C single combination head wide belt sander has a 24'' working width and comes standard with a 24'' x 75'' belt and variable speed invisible seam feed mat. The combination head provides the benefit of sanding with a roller and platen inside a single-head machine footprint. Features heavy steel frame design, digitally positioned elevation control with close to 6'' opening and independent start/stop controls for the feed and bely

MACHINE HP: 11-1/4HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 33/16.5 Amps
Configuration: Combination
1st HEAD: 10 HP 4'' Fluted Drum with Platen
FEED HP: 1 HP
FEED SYSTEM: 24/1/2'' Feed Mat
DRIVE SYSTEM: Motor / Gear Box Variable Speed Clutch
FEED SPEED RANGE: 15-35 FPM
VARIABLE FEED SPEED: Adjustable Pulley
ELEVATION HP: 1/4 HP
ELEVATION STYLE: 4 Post Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
MIN. WORKING LENGTH: 12''
MAX. WORKING WIDTH: 24-1/2''
MIN. WORKING THICKNESS: .160''
MAX. WORKING THICKNESS: 6''
SANDPAPER SIZE: 25'' X 75''
PLATEN SPECIFICATIONS: 1-3/4'' x 27''
DRUM SPECIFICATIONS: 4'' Spiral Fluted 65 Durometer
ROLLER TYPE: 3'' Rear Steel Idle Drum
1st BELT SPEED: 2600 FPM
OSCILLATION RATE: 12 Cycles per minute
OSCILLATION TRAVEL: 3/4''
CLEANING SYSTEM: Jet Blow Off on Tracking Sensor
TRACKING STYLE: Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
DUST COLLECTION REQUIREMENT: 681 CFM @Extraction Points
DUST PORT SIZE OUTLET: (2) 5'' Ports
DIGITAL DISPLAY: Elevation Controller
PRESSURE SHOES: (2)
HOLD DOWN STYLE: Pressure Shoe / Rollers
FLR INCLUDED: Filter/,Lubricator,Regualtor
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @90 PSI
EMERGENCY STOP: Push Button
REAR E STOP: Push Button
GUARDING: Full Enclosure
FRAME CONSTRUCTION: 1/4'' Steel
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 78 dB
NET WEIGHT: 1420 Lbs.
GROSS WEIGHT: 1654 Lbs.
MACHINE DIMENSIONS: 50'' x 41'' x 74''
PACKAGING DIMENSIONS: 44'' x 53'' 84''
