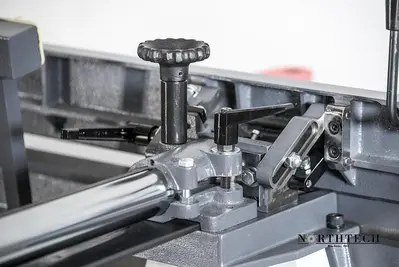

The NT-1696 Jointer has a 16″ working width and 8ft table for a smooth and flat surface making them ideal for gluing surface prep. Cast iron bases and rigid tables are designed for industrial use and will provide decades of use. Helical cutter heads employ a 30x12x2.5mm insert that can be rotated 1 time for a new cutting surface. The parallelogram design ensures smooth movement of the infeed bed for varying stock removals.
BOTTOM HEAD HP: 7.5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 11 / 22 Amps
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: Line Voltage 230/460
PASS-LINE: 30-3/4 - 31-1/2''
MIN. WORKING LENGTH: 12''
MIN. WORKING WIDTH: 3''
MAX. WORKING WIDTH: 16''
CUTTER HEAD RPM: 5000 RPM
HEAD TYPE: Spiral Helical Cutter Head
CUTTER HEAD DIMENSIONS: 4'' x 16''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 6 Rows
NO. OF INSERTS: 57 Inserts
INSERT SIZE: 30 x 12 x 2.5 MM
DUST COLLECTION REQUIREMENT: 981 CFM @Point of Extraction
DUST PORT SIZE OUTLET: 6'' Port
GUARDING: Swivel Fence
FENCE DIMENSIONS: 5-3/8'' x 47''
FRAME CONSTRUCTION: Cast Construction
INFEED TABLE LENGTH: 47-1/2''
OUTFEED TABLE LENGTH: 47-1/2''
DECIBEL RATING: 73 dB
NET WEIGHT: 956 Lbs.
GROSS WEIGHT: 1160 Lbs.
MACHINE DIMENSIONS: 97'' x 46'' x 44''
PACKAGING DIMENSIONS: 100'' x 30'' x 40''
