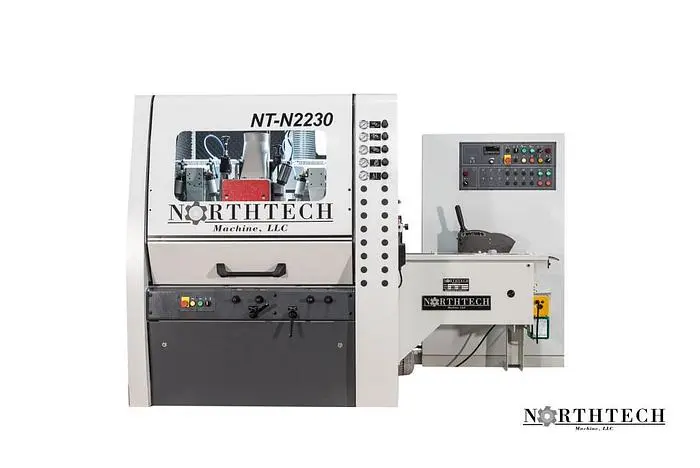

NEW NORTHTECH NT-N2230
Overview
NT-N2230 MOULDER 2 HEAD The NT N2230 is a specially designed 6″ x 9″ moulder. This 2 spindle machine is configured with a single top and bottom horizontal spindle. The elimination of vertical spindles allows for an industrial grade machine with a small footprint. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.
Specs
MACHINE HP: 33 HP
REVERSIBLE MOTOR: Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 110-55 Amp
CONFIGURATION: B - T
1ST SPINDLE: 10 HP Bottom Horizontal
2nd SPINDLE: 15 HP Top Horizontal
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: 9-3/4''
FEED HP: 7.5 HP
FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers
DRIVE SYSTEM: Gear Box / Carden Shaft
FEED SPEED RANGE: 20-120 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Yes
ELEVATION HP: 1 HP
ELEVATION STYLE: Raise Lower Switch
ELEVATION SYSTEM: (3) Jack Screws / Guides
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta Head 2
PASS-LINE: 34-3/4''6'' x 9''
MAX. WORKING LENGTH: 23-1/2''
MAX. WORKING WIDTH: 9''
MIN. WORKING THICKNESS: 3/16''
MAX. WORKING THICKNESS: 6-1/4
DUST COLLECTION REQUIREMENT: 981 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 6'' Ports
DIGITAL DISPLAY: Feed Speed
POWERED ROLLERS: (6) Powered Rollers
PRESSURE SHOES: (2) Head 2
HOLD DOWN STYLE: Pneumatic
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (1)
REAR E STOP: (1)
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: Yes
OILER: Auto Bed Oiler
FENCE TYPE: Fixed
FRAME CONSTRUCTION: Cast / Steel
TABLE CONSTRUCTION MATERIAL: Cast with Chrome Finish
INFEED TABLE LENGTH: 37-1/2''
DECIBEL RATING: 66 dB
NET WEIGHT: 5725 Lbs.
GROSS WEIGHT: 6385 Lbs.
MACHINE DIMENSIONS: 99'' x 73'' x 75''
PACKAGING DIMENSIONS: 104'' x 82'' x 83''
