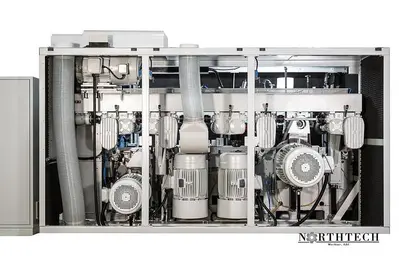

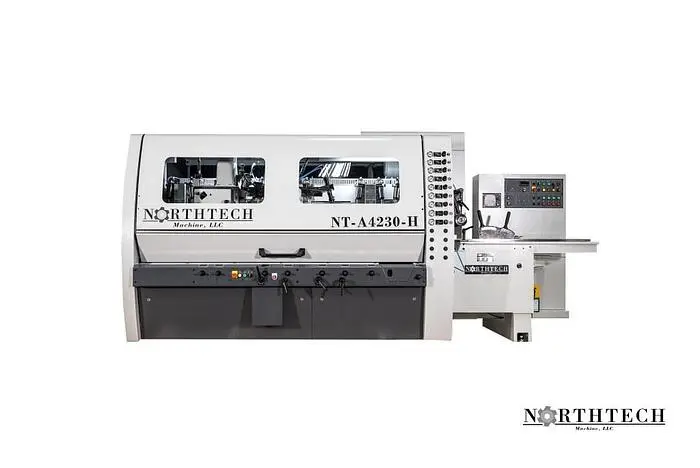

NEW NORTHTECH NT-A4230-H150

MACHINE HP: 101 HP
REVERSIBLE MOTOR: Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 238/119 Amps
CONFIGURATION: B - R - L - T
1ST SPINDLE: 25 HP Bottom Horizontal
2nd SPINDLE: 15 HP Right Vertical
3rd SPINDLE: 15 HP Left Vertical
4th SPINDLE: 30 HP Top Horizontal
SPINDLE DIAMETER: 1-13/16''
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: 10'' Vertical 7'' Horizontal
FEED HP: 15 HP
FEED SYSTEM: Knurled Feed Rollers / Polyurethane Rollers
DRIVE SYSTEM: Gear Box / Carden Shaft
FEED SPEED RANGE: 20-200 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Yes
ELEVATION HP: 1 HP
ELEVATION STYLE: Raise Lower Switch
ELEVATION SYSTEM: (3) Jack Screws / Guides
TOTAL MACHINE HP: 101 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta Heads 1-4
PASS-LINE: 36-3/4''
CUTTING ENVELOPE: 6'' x 9''
MIN. WORKING LENGTH: 27''
MIN. WORKING WIDTH: 7/16''
MAX. WORKING WIDTH: 9''
MIN. WORKING THICKNESS: 7/16''
MAX. WORKING THICKNESS: 6''
NO. OF INSERTS: 28 Vertical 63 Horizontal
INSERT SIZE: 30 x 12 x 2.5 MM
DUST COLLECTION REQUIREMENT: 1336 CFM @Points of Extraction
DUST PORT SIZE OUTLET: (4) 7''
DIGITAL DISPLAY: Feed Speed
POWERED ROLLERS: (9) Top (4) Bed Rollers
IDLE ROLLERS: (4) Aux. Top (4) Aux. Side Rollers
PRESSURE SHOES: (2) 4th Head

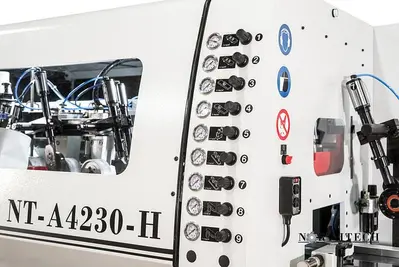

HOLD DOWN STYLE: Pneumatic
TOTAL CLAMPS: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (2)
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: (15) Fittings
OILER: Bed Lubricant
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 1'' x 91''
FRAME CONSTRUCTION: Cast / Steel
WORKTABLE DIMENSIONS: 10-3/4'' x 158-1/2''
TABLE CONSTRUCTION MATERIAL: Cast Chromed Finish
INFEED TABLE LENGTH: 57-1/2''
MEASURING METHOD: Siko Counters
DECIBEL RATING: 75 dB
NET WEIGHT: 12900 Lbs.
GROSS WEIGHT: 13600 Lbs.
MACHINE DIMENSIONS: 161'' x 83'' x 80''
PACKAGING DIMENSIONS: 163'' x 90'' x 84''
