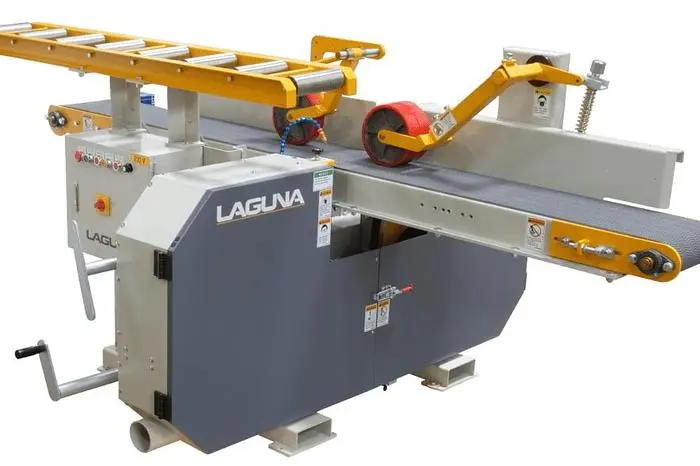

NEW LAGUNA HRS-28

The HRS-28 Horizontal Band Resaw was designed to be Laguna tough to withstand any jobs thrown at it. We designed this bandsaw to be fully adjustable to accommodate a wider variety of stock so that users can get the most bang for their buck. See the specs below and take the first step toward a truly quality cut. Features: Manual Blade Tension Control. The blade tension is adjusted by turning the tensioning handle. Large handle design facilitates blade tension adjustment. Easy to Elevate Saw Wheels Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation. Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels Additional Details Max. Work Piece Size (W x H): 11.8″ x 9.8″ Distance From Blade To Conveyor Table: 4-125mm Conveyor Belt Size: 11.2″ x 215.4″ In-Feed Speed: 5-25M/min Blade Size: 168″ x 1″ Main Motor: 20HP Electric Conveyor: 2HP Motor 30 – 1 Gearbox + 2HP Inverter Manual Return Conveyor Net Weight: 1982 lbs Minimum Working Length: 15.7″ Pressure Roller System For Accurate Cutting Tolerance: ±0.1mm Shipping Dimensions (L x W x H): 120″ x 88.5″ x 87″

Max. Work Piece Size (W x H): 11.8″ x 9.8″
Distance From Blade To Conveyor Table: 4-125mm
Electric Conveyor: 2HP Motor 30 – 1 Gearbox + 2HP Inverter
Manual Return Conveyor: Yes
Pressure Roller System For Accurate Cutting: Yes
Shipping Dimensions (L x W x H): 120″ x 88.5″ x 87″
Conveyor Belt Size: 11.2″ x 215.4″
In-Feed Speed: 5-25M/min
Net Weight: 1982 lbs
Tolerance: ±0.1mm
Minimum Working Length: 15.7″
Blade Size: 168″ x 1″
Main Motor: 20HP
