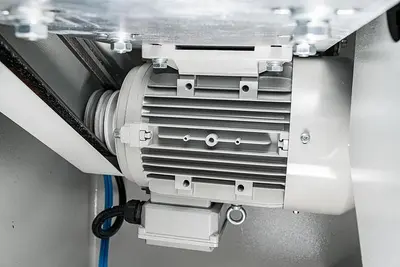

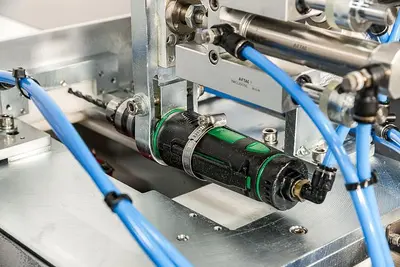

• Motor 5HP 3PH 230V or 460V 60HZ • Max notch dimensions: 57mm (2 1⁄4”) x 0.5” H • Capable of notching over 200 boxes/hr • Designed to notch and drill the underside of a drawer box for mounting undermount drawer slides • Cutter diameter: 10” • Drill diameter: 1⁄4” • Table size: 50” x 23” • Passline: 33” • (1) Dust port 4” requiring 436CFM at point of extraction • Compressed air required 90 – 100 PSI • Pneumatic cutter & drill stroke by foot pedal operation simultaneously for fast cycles • Cutter stroke and drill speed are adjustable • Machine will not cycle unless a drawer is up against the switch for safe operation • Insert knife cutterhead with solid carbide inserts for optimum fi nish results and long tool life • Comes with 2-1/4” cutterhead with inserts and 1⁄4” (6.3mm) carbide drill bit • Machine dimensions (LxWxH): 48” x 38” x 40” • Machine weight: 650lbs • Operation and Parts Manual included • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.

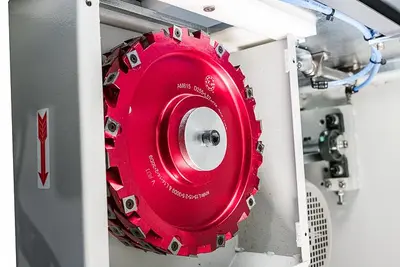

• Cutter diameter: 10”
• Drill diameter: 1⁄4”
• Table size: 50” x 23”
• Passline: 33”
• Machine weight: 650lbs
