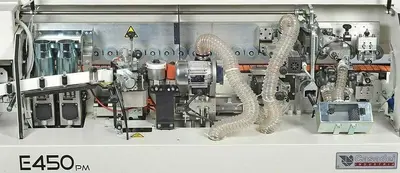

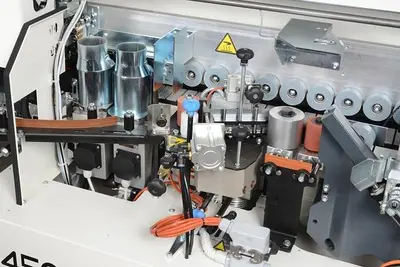

Chain feeding system Pre-milling Interchangeable glueing unit Flex (opt.) 2 free spaces for finishing units
| Weight | 420 Kg approx. | 420 Kg approx. |
Min./max. panel height:: min 8 - max 45 mm
Min./max. edge thickness:: 0,4 - 3 mm (coils) / 0,4 – 5 mm (strips)*
Minimum panel length (side being processed):: 210 mm

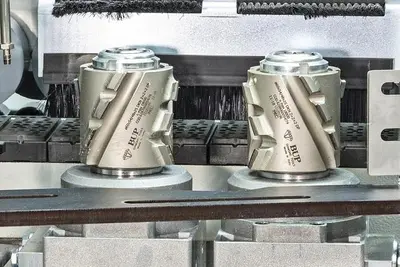

Pre-milling motors (each): 200 Hz - 12.000 rpm - 0,75 kW
Glue pot heating element: 1490 W - Nr. 6 cartridges
End trimming blade rotation speed:: 9000 rpm
End trimming motor: 50 Hz – 0,18 kW

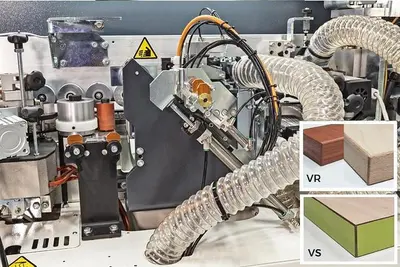

Flush trimming motors (each): 200 Hz - 12.000 rpm - 0,22 kW
Cutterblocks with combined WIDIA disposable Knives (radius/beveled): Ø 75 mm Z4 - hole Ø 16 mm
Total power installed: 5 kW approx.
Panel feed speed: 7 m/min
Minimum panel width: 95 mm
